Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine

Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine
Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine

Large Image :  Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: KT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Application: LED Lights, Electrical Products, Household Appliance
Power Supply: 220V,50-60HZ Condition: New
Product Name: Automatic SMT Pick And Place Machine Weight: 2080KG
Mounting Speed: 48000 CPH(Optimal Speed) Dimension: 1490*2020*1650mm
Feeders: 52 PCS(option 104 PCS), IC Tray Option Pcb Thickness: 0.5-5 Mm
Highlight:

500*450mm PCB mounting Machine

,

household appliance PCB mounting Machine

,

48000 CPH SMT Pick And Place Machine

Max 500*450mm PCB mounting 48000 CPH SMT pick and place machine



Description

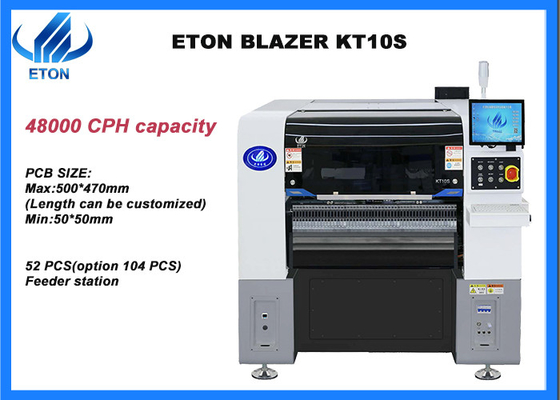

Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine 0

Optical Recognition Camera

Double Mark camera recognition ,adopt 3-color illumination recognition,apply shape mark and lens

Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent



Machine main parameter

Model KT10S
Dimension 1460*2015*1654mm
Total weight 2080kg
PCB size Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness 0.5-5mm
Mounting precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed 48000 CPH(Optimal speed)
Components LED, capacitor, resistors, shaped components,etc
Power consumption 220AC 50HZ 1.5KW
Feeder station 52 PCS(option 104 PCS), IC tray option
No. of head 10 PCS

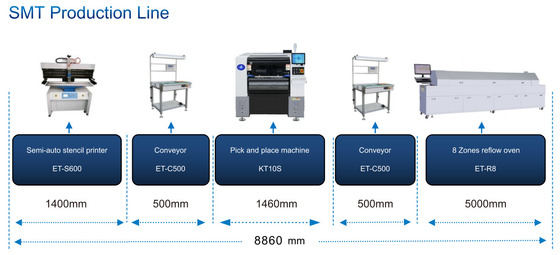

SMT Line solution

The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.

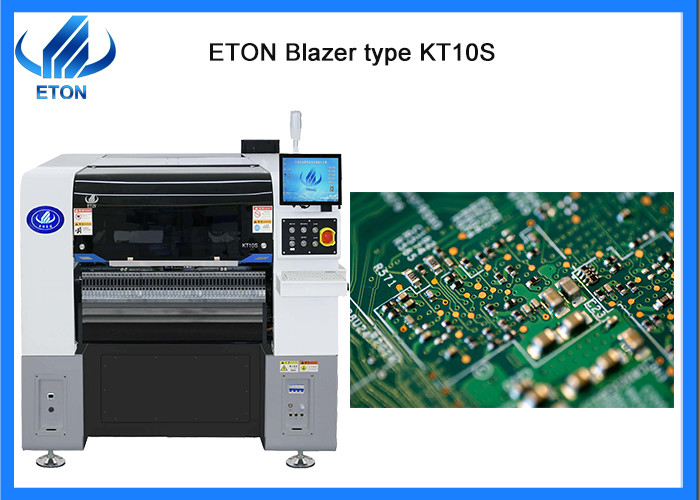

Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine 1

Our Exhibitions

Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine 2

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

Max 500*450mm PCB Mounting Machine 48000 CPH SMT Pick And Place Machine 3
