New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability

New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability
New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability

Large Image :  New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: KT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Dimension: 1490*2020*1650mm Pcb Thickness: 0.5-5 Mm
Speed: 48000 CPH (Optimal) Warranty: 1 Year
Application: LED Lights, Electrical Products, Household Appliance Power Supply: 220V,50-60HZ
Condition: New Product Name: Automatic SMT Pick And Place Machine
Weight: 2080KG
Highlight:

Double Drive Gantry SMT Machine

,

48000 CPH chip Mounter

,

Double Drive Gantry chip Mounter

Double drive gantry improved the speed and mounting stability SMT machine

Description

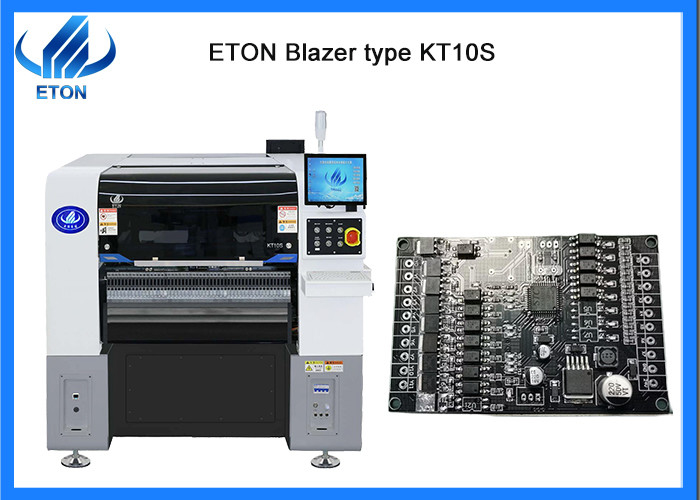

New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability 0

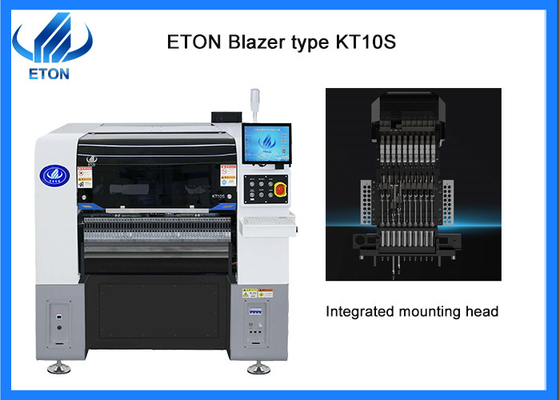

Double drive gantry structure

Y Axis drive by double magnetic linear motor ,higher stability

inreased by 25% compared with traditional machine,optimum placement speed reach 48000CPH

Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent



Machine main parameter

Model KT10S
Dimension 1460*2015*1654mm
Total weight 2080kg
PCB size Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness 0.5-5mm
Mounting precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed 48000 CPH(Optimal speed)
Components LED, capacitor, resistors, shaped components,etc
Power consumption 220AC 50HZ 1.5KW
Feeder station 52 PCS(option 104 PCS), IC tray option
No. of head 10 PCS

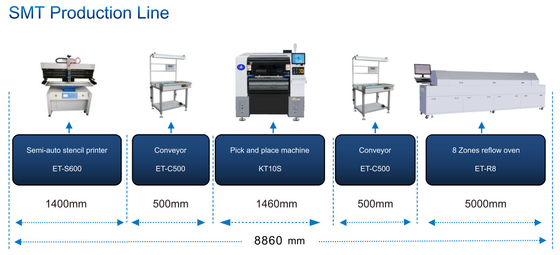

Machine application

New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability 1

Certificates



As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 200 practical patents, 49 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

etc.

New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability 2

Packages

Step 1: Wrap with stretch film to prevent the equipment from.

Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.

Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.

Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.

New SMT Machine Double Drive Gantry Improved The Speed And Mounting Stability 3
