Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | Reflow Oven |
|---|---|---|---|
| Condition: | New,100% Original,Brand-new | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Brand: | ETON |
| High Light: | SMT Reflow Oven with Intelligent Diagnosis,LED Production Line Reflow Oven |
||
Description of Reflow Oven
Features:
1. Windows XP system with English and Chinese is easy to learn how to operate and can be change any time.
2. The digital control system adopted with PLC and Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out and saving data.
4. Temperature and blower speed can be controlled independently, to meet the high-precision requirements.
5. Effective heating zone length, the heat conduction in full uniform distribution, greatly improving the heating efficiency.
6. Forced cooling system with efficient cooling speed suits all different kinds of lead-free soldering paste.
7. PLC and PID closed loop control to achieve high precision temperature control and repeatable profiles.
8. Standard 8 couples of up and down zones with patented air management system to make hot air convection more efficient and faster thermal compensation.
9. The rail is dealt with hardened process to make it more stability.
10. The rail width can be adjusted by manual.(option:automatically by SPG gear motor).
11. Chain Rails will be lubricated by central oil reservior device ,controlled by computer.
12. Strong software system can save all settings and can print all the data and profiles through PC.
13. With flux collecting system to keep inside zones clean and ensures more environmental emission.
14. Nitrogen with machine is option.
Main Parameter
| Model | ET-R12 | |
|
Heating System |
Number of heating zones | UP 12/BOTTOM 12 |
| Number of cooling zones | 2 | |
| Length of heating zones | 4600mm | |
| Heating mode | hot air | |
| Cooling Mode | Air Oven:Forced air; Nitrogen Oven: Water Chiller | |
| Exhaust Volume | 10m³/min * 2 exhausts | |
|
Conveyor System |
Max. Width of PCB | 450mm |
| Mesh belt width | 500mm | |
| Transmission Direction | L→R(or R→L) | |
| Transmission Net Height | 900±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 0-450mm | |
| Conveyor speed | 0-2000mm/min | |
| Auto/manual Lubrication | standard | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
|
Control system |
Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power | 60kw | |
| Starting power | 58kw | |
| Normal power consumption | 12KW | |
| Warming time | About 20 mins | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temp. (extra-high/extra-low temp.) | |
| Board dropped alarm | Tower light:Yellow-warming, Green-normal, Red-abnormal | |
|
General |
Dimension(L*W*H) | 6000×1400×1550mm |
| Weight | 2800KG | |
| Color | Computer gray | |

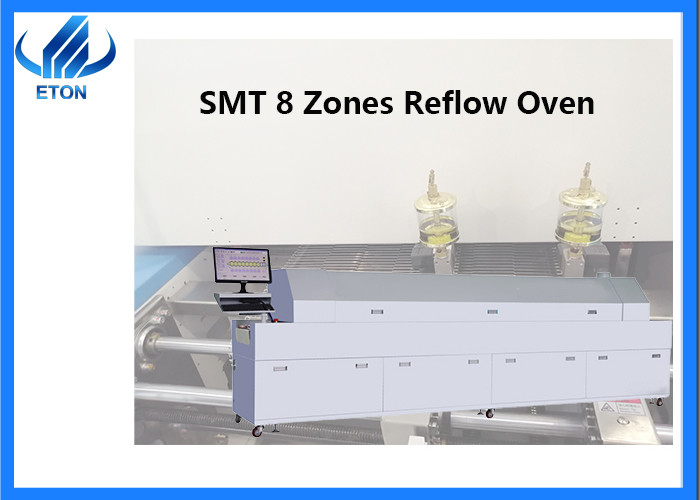

ET-R12 Reflow Oven Picture
Introduction of Our company
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines.
Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support.
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month.
Good and professional service. Provide engineer Door-to-door service, support video online training, video training.
share,free replaced machine core part during warranty. And also we could provide professional SMT line solution.
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Certification:
We got 9 invention patents, 112 practical patents,12 software patents.
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
Our after-sales service of Pick and Place Machine
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
Basic process elements of SMT:
Screen Printing (or dispensing) -- Assembly -- Solidification -- reflow soldering -- cleaning -- Detection -- Repair Screen
Printing: Its role is to solder paste or paste paste paste paste to the solder pad of the PCB, in preparation for the welding of components.
Dispensing: It is the glue drops to the fixed position of the PCB, its main role is to fix the components to the PCB board.
Mount: The function is to accurately mount the surface mount components to the fixed position of the PCB.
Curing: The function is to melt the SMT adhesive so that the SMT components are firmly bonded to the PCB board.
Reflow: its role is to melt the solder paste, so that the surface assembly components and PCB board firmly bonded together.
clean: The role is to assemble the PCB board above the harmful welding residues such as flux to remove.
testing: Its role is the assembly of a good PCB board for Welding Quality and assembly quality testing.
Repair: Its role is to detect the failure of the PCB board for Rework. The tools used are soldering iron, repair station and so on. In any position on the production line.
