High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure

High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure
High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure

Large Image :  High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: KT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Power Supply: 220V,50-60HZ Condition: New
Product Name: Automatic SMT Pick And Place Machine Warranty: 1 Year
Applicable Components: Min 0201~35*35mm Tape Reel Packages And IC Tray Feeder Etc. Dimension: 1490*2020*1650mm
Feeders: 52 PCS(option 104 PCS), IC Tray Option Pcb Thickness: 0.5-5 Mm
Highlight:

52 Feeder Sattion SMT Machine

,

High Performance SMT Mounter Machine

,

0.5-5 mm SMT mounter

One piece cast structure High performance 52 feeder sattion SMT machine



Description

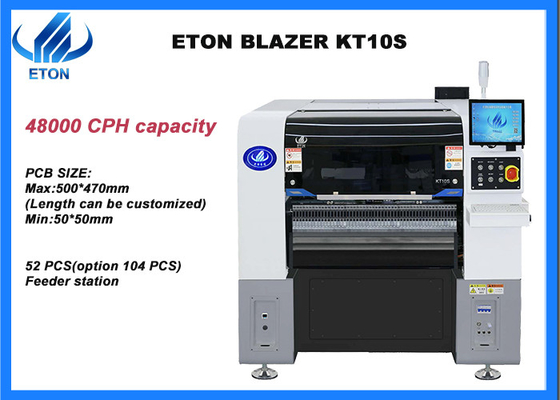

High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure 0



Integrated placement head

Lightweight and the head is integrally formed,and the 10 sets of Z axis are independently contralled by modular magnetic linear motor,which greatly improve the speed ,accuracy and stability.

Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent



Machine main parameter

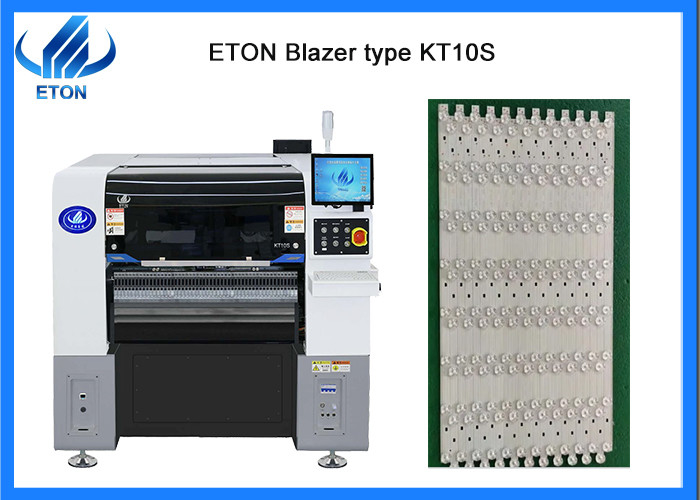

Model KT10S
Dimension 1460*2015*1654mm
Total weight 2080kg
PCB size Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness 0.5-5mm
Mounting precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed 48000 CPH(Optimal speed)
Components LED, capacitor, resistors, shaped components,etc
Power consumption 220AC 50HZ 1.5KW
Feeder station 52 PCS(option 104 PCS), IC tray option
No. of head 10 PCS



Market

Our products are exported to more than 30countries & regions

Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.

High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure 1

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure 2

SMT Line solution

The equipment required for the semi-automatic production line includes:

  • Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
  • Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
  • Reflow oven: melting the solder paste to make it adhere to the mounting components;
  • Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

High Performance 52 Feeder Sattion SMT Machine One Piece Cast Structure 3
