Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | Reflow Oven |
|---|---|---|---|
| Condition: | New,100% Original,Brand-new | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Brand: | ETON |
| High Light: | High-Precision SMT Reflow Oven,Temperature Control SMT Reflow Oven |
||

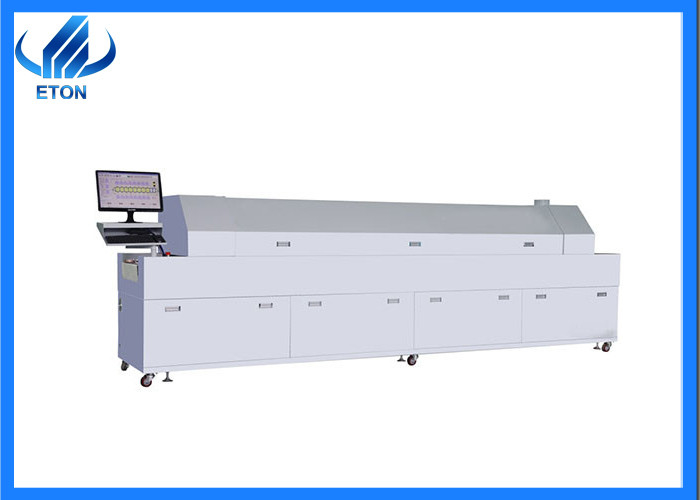

Description of Reflow Oven
Features
1. Windows XP system with English and Chinese is easy to learn how to operate and can be change any time.
2. The digital control system adopted with PLC and Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out and saving data.
4. Temperature and blower speed can be controlled independently, to meet the high-precision requirements.
5. Effective heating zone length, the heat conduction in full uniform distribution, greatly improving the heating efficiency.
6. Forced cooling system with efficient cooling speed suits all different kinds of lead-free soldering paste.
7. PLC and PID closed loop control to achieve high precision temperature control and repeatable profiles.
8. Standard 8 couples of up and down zones with patented air management system to make hot air convection more efficient and faster thermal compensation.
9. The rail is dealt with hardened process to make it more stability.
10. The rail width can be adjusted by manual.(option:automatically by SPG gear motor).
11. Chain Rails will be lubricated by central oil reservior device ,controlled by computer.
12. Strong software system can save all settings and can print all the data and profiles through PC.
13. With flux collecting system to keep inside zones clean and ensures more environmental emission.
14. Nitrogen with machine is option.
Main Parameter
| Model | ET-R12 | |
|
Heating System |
Number of heating zones | UP 12/BOTTOM 12 |
| Number of cooling zones | 2 | |
| Length of heating zones | 4600mm | |
| Heating mode | hot air | |
| Cooling Mode | Air Oven:Forced air; Nitrogen Oven: Water Chiller | |
| Exhaust Volume | 10m³/min * 2 exhausts | |
|
Conveyor System |
Max. Width of PCB | 450mm |
| Mesh belt width | 500mm | |
| Transmission Direction | L→R(or R→L) | |
| Transmission Net Height | 900±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 0-450mm | |
| Conveyor speed | 0-2000mm/min | |
| Auto/manual Lubrication | standard | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
|
Control system |
Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power | 60kw | |
| Starting power | 58kw | |
| Normal power consumption | 12KW | |
| Warming time | About 20 mins | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temp. (extra-high/extra-low temp.) | |
| Board dropped alarm | Tower light:Yellow-warming, Green-normal, Red-abnormal | |
|
General |
Dimension(L*W*H) | 6000×1400×1550mm |
| Weight | 2800KG | |
| Color | Computer gray | |
SMT Production Line
Semi-automatic printing machine: Simple operation, fast printing speed, simple structure, the disadvantages are less controllable points of printing process parameters, low printing alignment accuracy, poor solder paste demoulding, generally applicable to 0603(inch system) above components, lead pitch greater than 1.27 mm PCB printing process.
FULL-AUTOMATIC PRINTING MACHINE: Printing alignment accuracy is high, solder paste demoulding effect is good, printing process is stable, suitable for the printing of close spacing components, the disadvantage is, maintenance cost is high, the knowledge level of the operator is higher.
Packaging
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Certification
We got 9 invention patents, 112 practical patents,12 software patents.
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
After-sales service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
