Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | Reflow Oven |
|---|---|---|---|
| Condition: | New,100% Original,Brand-new | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Brand: | ETON |
| High Light: | SMT Reflow Oven with Flux Collecting,SSR driving SMT Reflow Oven |
||

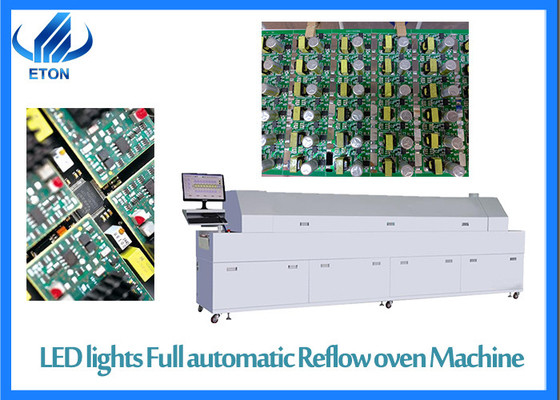

Description of Reflow Oven
WHY choose us?
Shenzhen ETON automation equipment Co., Ltd., founded in 2011, is a manufacturing and process solution provider focusing on the R &D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment.
With strong production capacity, ETON has an industrial park of more than 50000 square meters in Jiangxi Province, 7 buildings, more than 300 employees,supporting OEM & ODM, and the mechanical capacity is more than 50 sets / month
It has its own independent R & D team and more than 20 years of R & D experience.
Main Parameter
| Model | ET-R12 | |
|
Heating System |
Number of heating zones | UP 12/BOTTOM 12 |
| Number of cooling zones | 2 | |
| Length of heating zones | 4600mm | |
| Heating mode | hot air | |
| Cooling Mode | Air Oven:Forced air; Nitrogen Oven: Water Chiller | |
| Exhaust Volume | 10m³/min * 2 exhausts | |
|
Conveyor System |
Max. Width of PCB | 450mm |
| Mesh belt width | 500mm | |
| Transmission Direction | L→R(or R→L) | |
| Transmission Net Height | 900±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 0-450mm | |
| Conveyor speed | 0-2000mm/min | |
| Auto/manual Lubrication | standard | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
|
Control system |
Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power | 60kw | |
| Starting power | 58kw | |
| Normal power consumption | 12KW | |
| Warming time | About 20 mins | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temp. (extra-high/extra-low temp.) | |
| Board dropped alarm | Tower light:Yellow-warming, Green-normal, Red-abnormal | |
|
General |
Dimension(L*W*H) | 6000×1400×1550mm |
| Weight | 2800KG | |
| Color | Computer gray | |
SMT Production Line
Semi-automatic printing machine: Simple operation, fast printing speed, simple structure, the disadvantages are less controllable points of printing process parameters, low printing alignment accuracy, poor solder paste demoulding, generally applicable to 0603(inch system) above components, lead pitch greater than 1.27 mm PCB printing process.
FULL-AUTOMATIC PRINTING MACHINE: Printing alignment accuracy is high, solder paste demoulding effect is good, printing process is stable, suitable for the printing of close spacing components, the disadvantage is, maintenance cost is high, the knowledge level of the operator is higher.
5F creates five-star service for you
Free Warranty: One-year warranty factory service.
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
Certification
We got 9 invention patents, 112 practical patents,12 software patents.
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days’ deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
