Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | Reflow Oven |
|---|---|---|---|
| Condition: | New,100% Original,Brand-new | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Brand: | ETON |
| High Light: | 12 Zones SMT Reflow Oven,Mesh Chain SMT Reflow Oven |
||

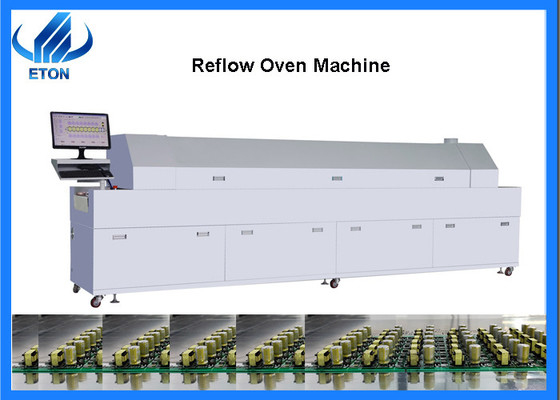

Description of Reflow Oven
WHY choose us?
Shenzhen ETON automation equipment Co., Ltd., founded in 2011, is a manufacturing and process solution provider focusing on the R &D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment.
With strong production capacity, ETON has an industrial park of more than 50000 square meters in Jiangxi Province, 7 buildings, more than 300 employees,supporting OEM & ODM, and the mechanical capacity is more than 50 sets / month
It has its own independent R & D team and more than 20 years of R & D experience.
Main Parameter
| Model | ET-R12 | |
|
Heating System |
Number of heating zones | UP 12/BOTTOM 12 |
| Number of cooling zones | 2 | |
| Length of heating zones | 4600mm | |
| Heating mode | hot air | |
| Cooling Mode | Air Oven:Forced air; Nitrogen Oven: Water Chiller | |
| Exhaust Volume | 10m³/min * 2 exhausts | |
|
Conveyor System |
Max. Width of PCB | 450mm |
| Mesh belt width | 500mm | |
| Transmission Direction | L→R(or R→L) | |
| Transmission Net Height | 900±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 0-450mm | |
| Conveyor speed | 0-2000mm/min | |
| Auto/manual Lubrication | standard | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
|
Control system |
Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power | 60kw | |
| Starting power | 58kw | |
| Normal power consumption | 12KW | |
| Warming time | About 20 mins | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temp. (extra-high/extra-low temp.) | |
| Board dropped alarm | Tower light:Yellow-warming, Green-normal, Red-abnormal | |
|
General |
Dimension(L*W*H) | 6000×1400×1550mm |
| Weight | 2800KG | |
| Color | Computer gray | |
SMT Production Line
Semi-automatic printing machine: Simple operation, fast printing speed, simple structure, the disadvantages are less controllable points of printing process parameters, low printing alignment accuracy, poor solder paste demoulding, generally applicable to 0603(inch system) above components, lead pitch greater than 1.27 mm PCB printing process.
FULL-AUTOMATIC PRINTING MACHINE: Printing alignment accuracy is high, solder paste demoulding effect is good, printing process is stable, suitable for the printing of close spacing components, the disadvantage is, maintenance cost is high, the knowledge level of the operator is higher.
Service
We can provide you with excellent service, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
1.We can provide you with the whole production line.
2.Our software is R&D independently.We can offer software upgrade for lifetime for free
3.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
4.If you have any problem with the product, we will have overseas engineers come to your home for free repair or replacement within one year. Because we have offices overseas and local engineers.
FAQ
Q1: What is your machine actual speed?
A1: The actual speed is influenced by many factors, such as the number of the components, the kind of products, the time of send board, etc. So we can’t give you the accurate actual production capacity. Such as for RT-1, the speed of led chip mainly around 23000-25000CPH. But for driver will be different.
Q2: Does the price include spare parts(nozzle and feeder)?
A2: Different client has different requirements on spare parts, it is not fair to clients to add in equivalent price for spare parts, so we don’t add the spare parts on price. And price is only for machine.
Q3: Can you support whole SMT line?
A3: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
Q4: What is your machines quality?
A4: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
Q5: What is your delivery date?
A5: The delivery date is about 20 days upon the full payment.
