45000CPH Power Drive Tube Light Making Machine 12 Head
Advantage:
- Mount small components: MIN.size:0402(length*width:1mm*0.5mm)
- Wide range of use: It is suitable for LED,electric board, lens, linear bulb,household Appliance,power driver,etc.
- High precision: +-0.02mm. 2 sets of imported camera with its features of vision alignment flight identification and Mark correction to solve the problem of throwing materials of previous machines.
- High technology: Automatic operation, save a lot of manpower and material resources. Exclusive Patent Technology: group to pick and group to mount. High-end magnetic linear motor +servo motor to drive X,Y Axis.
Specification:
| Length |
2550mm |
| Width |
1650mm |
| Height |
1550mm |
| Total weight |
1700kg |
| PCB size |
Max:1200*500mm Min:100*100mm |
| PCB thickness |
0.5-5mm |
| Mounting height |
<15mm |
| Mounting speed |
45000CPH |
| No.of head |
12PCS |
| Mounting precision |
±0.04mm |
Application:

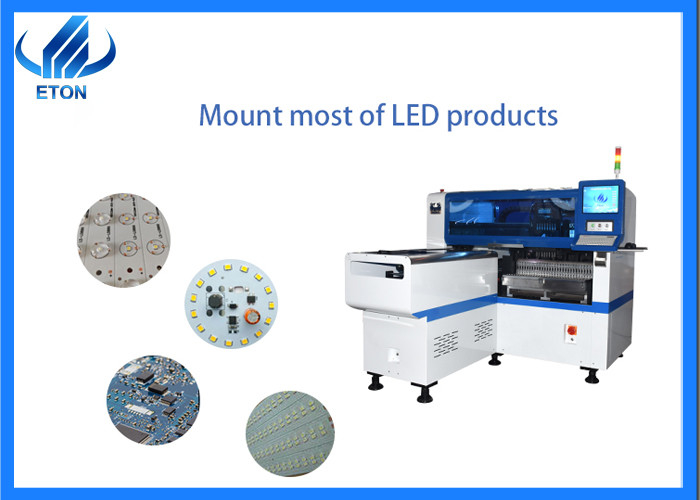

Apply to the electric board, LED flexible strip,power drive,tube,lens,etc.
Component: Min. size 0402 Max. height 18mm.
Application: Power drive,electric board,lens,DOB bulb,linear bulb,household appliance,etc.

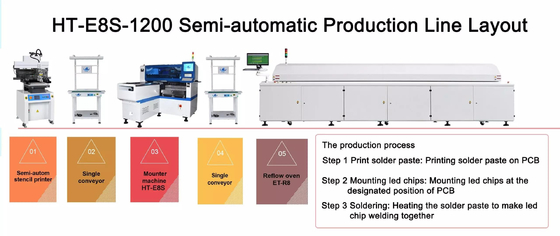

What is the position in the SMT line ?
From the below picture, we can see that , the pick and place machine is in the middle of the line.
The important position it occupied is also the most critical part. Without it, the entire production line has no meaning.
So, it is vital to choose a good pick and place machine.
About us:
ETON ( Shenzhen ETON automation equipment CO.,LTD.)
1.We are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
2.We are 15 years old this year , still younger, but we have won many prizes: the 4th China · LED Pioneer Award, National High-tech Enterprise, Industry Special Contribution Award…
3.We are still committed to R & D and innovation to continuously improve the speed and quality of the pick and place machine.
4.We are very happy to have many friends from all directions, we are also willing to make progress together with friends from all over the world.
Exhibition:
We have get to many countries to participate exhibition.
Packaging:
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
FAQ:
1. This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine. Generally you can learn in two to three days.
2.If machine have any problem after I receive it, how can I do ?
If the machine has quality problems that are not caused by humans, we will re-send you new replacements for free. However, the quality problem of the product itself generally does not occur, and each machine will be inspected by a person before the shipment.
3. How long can be shipped after the order ?
After the order is placed, we will immediately prepare the goods, generally can be shipped within 1 month, except for customized products .
4. What can we do for you?
Free placement machine installation, operation training, SMT production line plan design.
5. Are you a trading company or a factory?
We have the factory and we are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
6. Do you have your own R&D team?
Yes, we can customize products as your requirements.
