Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine | Mounting Speed: | 45000 CPH |
| Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
| Feeders: | 28 | Tape Width: | 24mm,8mm,12mm |
| High Light: | SMT Placement Machine For LED,28 Feeders SMT Placement Machine,SMT Placement Machine For LED Products |
||

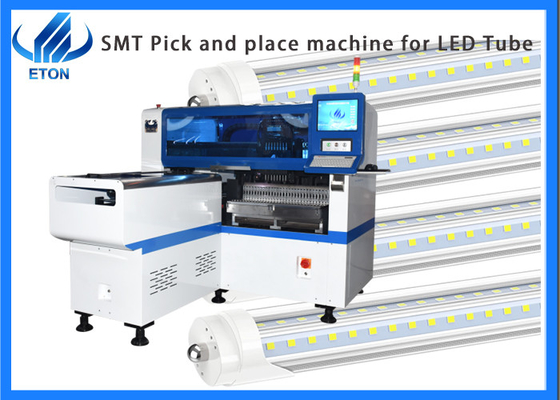

ETON SMT placement for led and electric products pick and place machine
Description of Pick and Place Machine HT-E8S
The main function of SMT machine HT-E8S: Used for SMT production process to accurately mount components on PCB board fixed position.
The SMT machine uses the suction nozzle on the head to absorb various components from feeders and mount them on the PCB board.
SMT pick and place machine is the main equipment in SMT production process, which can not be replaced by other equipment.
SMT production process is the solder paste coating, component mounting, reflow welding, it is the most major process in the SMT production process. In order to get good mounting quality, SMT pick and place machine should have good mounting process in addition to good equipment.
Specification:
| Length | 2550mm |
| Width | 1650mm |
| Height | 1550mm |
| Total weight | 1700kg |
| PCB size | Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| Mounting height | <15mm |
| Mounting speed | 45000CPH |
| No.of head | 12PCS |
| Mounting precision | ±0.04mm |
Application
Bulb light,DOB bulb,Display,Tube light,flexible strip light,Electric board,Power driver,LED chip board,Lens,Wall light,Street light etc.
What is the position in the SMT line ?
The semi-automatic production line
Solder paste printing machine,conveyor, Pick and Place machine, reflow oven.
The full-automatic production line
PCB Loader, conveyor, transplanting machine, buffer frame, automatic printing machine, pick and place machine, belt transport guide rail, reflow oven, PCB Un-loader.
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Package
Our machines are usually packed in vacuum wooden cases to ensure that the products can be delivered to customers in good condition. The mode of transportation ,we usually sea or air, mainly according to the needs of customers.
FAQ
Q: Is the machine free of charge?
A: Yes. Our warranty for the whole machine is one year, but in addition, we provide customers with free maintenance once or twice a year.
Q: What products you sell?
A: Our company deal in the following products:
SMT equipment and accessories: pick and place machine, stencil printer machine, glue dispenser, conveyor, feeders, SMT nozzles,etc.
Q: How about the quality of your products?
A: We have more than 10 years of experience in this industry, the quality of products is guaranteed, the products are popular at home and abroad, and have won the trust of many customers.
Q:Do you have offices and local engineers in overseas?
Yes, we have established offices and local engineers in Egypt, Turkey and India,etc
