SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB

SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB
SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB

Large Image :  SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: KT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Applicable Components: 0402
Name: SMT Automatic Pick And Place Machine Application: LED Lights, Electrical Products, Household Appliance
Power Supply: 220V,50-60HZ Condition: New
Weight: 2080KG Mounting Speed: 48000 CPH(Optimal Speed)
Dimension: 1490*2020*1650mm Feeders: 52 PCS(option 104 PCS), IC Tray Option
Pcb Thickness: 0.5-5 Mm
Highlight:

10 Heads Pick And Place Machines

,

500*470mm PCB SMT Pick Place Machine

,

LED Lighting SMT Pick Place Machines

LED lighting 500*470mm MAX PCB SMT 10 heads pick and place machine

Description

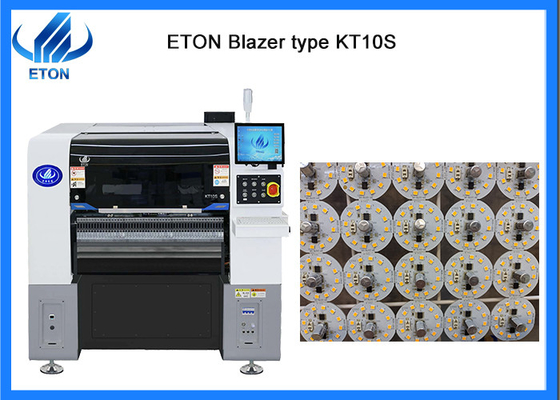

SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB 0

INVENTION PATENT:PLACEMRNT HEAD

1.Integrated placement head

Lightweight and the head is integrally formed,and the 10 sets of Z axis are independently contralled by modular magnetic linear motor,which greatly improve the speed ,accuracy and stability.
Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model

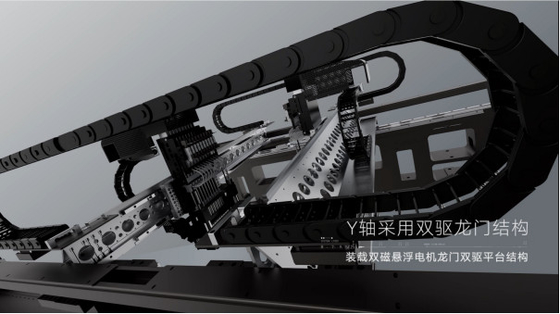

  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent


Machine main parameter

ModelKT10S
Dimension1460*2015*1654mm
Total weight2080kg
PCB sizeMax:500*470mm(Length can be customized) Min:50*50mm
PCB thickness0.5-5mm
Mounting precisionCHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed48000 CPH(Optimal speed)
ComponentsLED, capacitor, resistors, shaped components,etc
Power consumption220AC 50HZ 1.5KW
Feeder station52 PCS(option 104 PCS), IC tray option
No. of head10 PCS


Machine application
SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB 1
Our advantage

  • Focusing on SMT high speed pick and place machine more than 20 years
  • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB 2
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB 3
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
SMT 10 Heads Pick And Place Machine For LED Lighting / 500*470mm Max PCB 4
