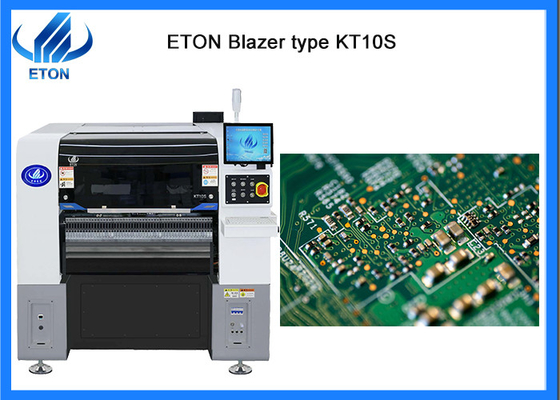

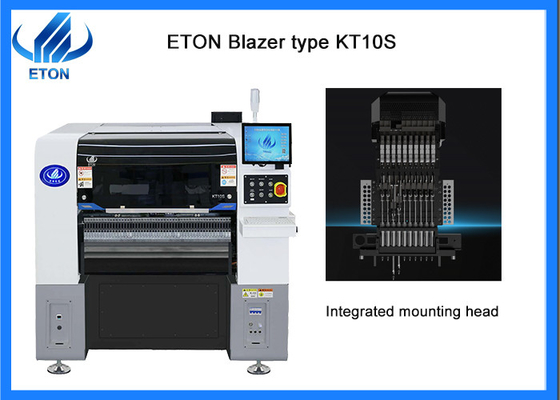

48000 Capacity Multifunctional SMT Pick Place Machine For 0.5-5 Mm Thickness PCB

Large Image : 48000 Capacity Multifunctional SMT Pick Place Machine For 0.5-5 Mm Thickness PCB

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA,ISO
Model Number:	KT10S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Application:	LED Lights, Electrical Products, Household Appliance	Power Supply:	220V,50-60HZ
Warranty:	1 Year	Applicable Components:	0402
Condition:	New	Product Name:	Automatic SMT Pick And Place Machine
Weight:	2080KG	Mounting Speed:	48000 CPH(Optimal Speed)
Dimension:	149020201650mm	Feeders:	52 PCS(option 104 PCS), IC Tray Option
Pcb Thickness:	0.5-5 Mm
Highlight:	0.5-5 Mm PCB Surface Mount Machine , 5 Mm PCB SMT Pick Place Machine , 48000 Capacity SMT Pick Place Machine

48000 Capacity multifunctional ANC SMT pick and place machine

Description

48000 Capacity Multifunctional SMT Pick Place Machine For 0.5-5 Mm Thickness PCB 0

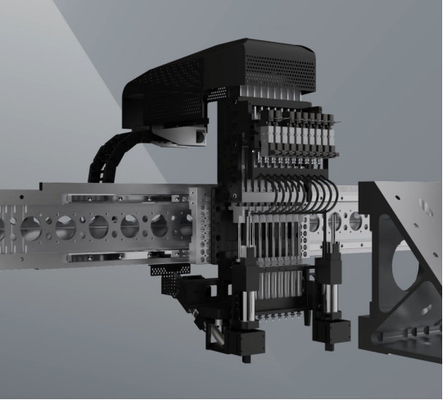

Vacuum Sensing Device

Each placement heads with independent detection function,which inproves the stability of the equipment and the reliability of the product.

Machine main features

Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
Y axis double drive gantry, higher speed more stability
The placement head adopt independent vacuum detection, improve the placement performance
Off-line programming, save time of changeover cycle
Equipped coordinate import function, more intelligent

Machine main parameter

Model	KT10S
Dimension	146020151654mm
Total weight	2080kg
PCB size	Max:500470mm(Length can be customized) Min:5050mm
PCB thickness	0.5-5mm
Mounting precision	CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed	48000 CPH(Optimal speed)
Components	LED, capacitor, resistors, shaped components,etc
Power consumption	220AC 50HZ 1.5KW
Feeder station	52 PCS(option 104 PCS), IC tray option
No. of head	10 PCS

48000 Capacity Multifunctional SMT Pick Place Machine For 0.5-5 Mm Thickness PCB 1

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 200 practical patents, 49 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

Packages

Step 1: Wrap with stretch film to prevent the equipment from.

Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.

Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.

Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
