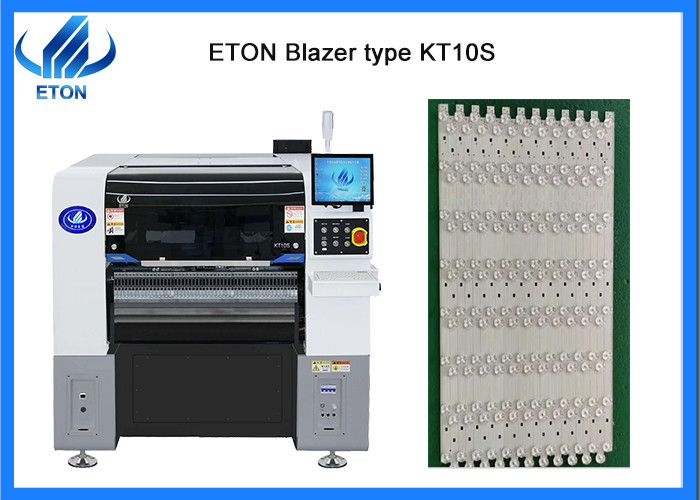

Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment

Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment
Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment

Large Image :  Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: KT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Applicable Components: 0402
Application: LED Lights, Electrical Products, Household Appliance Power Supply: 220V,50-60HZ
Condition: New Weight: 2080KG
Mounting Speed: 48000 CPH(Optimal Speed) Dimension: 1490*2020*1650mm
Feeders: 52 PCS(option 104 PCS), IC Tray Option Pcb Thickness: 0.5-5 Mm
Highlight:

Min LED Components SMT Machine

,

CE Household Appliance SMT Machine

,

Min 0402 Pick And Place Equipment

0402 Min LED components household appliance SMT pick and place machine



Description

Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment 0

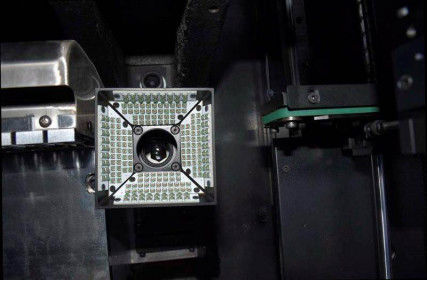

Optical Recognition Camera

Double Mark camera recognition ,adopt 3-color illumination recognition,apply shape mark and lens

Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent

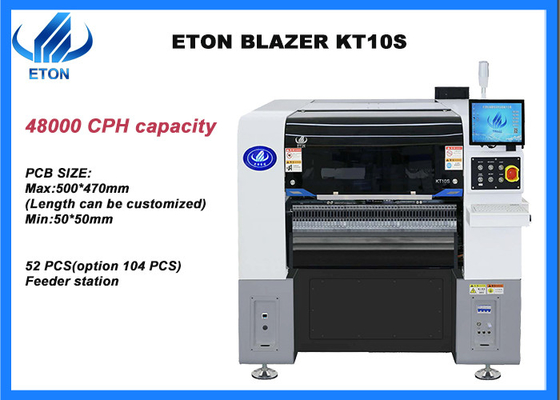

Machine main parameter

Model KT10S
Dimension 1460*2015*1654mm
Total weight 2080kg
PCB size Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness 0.5-5mm
Mounting precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed 48000 CPH(Optimal speed)
Components LED, capacitor, resistors, shaped components,etc
Power consumption 220AC 50HZ 1.5KW
Feeder station 52 PCS(option 104 PCS), IC tray option
No. of head 10 PCS

Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment 1

Market

Our products are exported to more than 30countries & regions

Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.

Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment 2

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment 3

SMT Line solution

The equipment required for the semi-automatic production line includes:

  • Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
  • Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
  • Reflow oven: melting the solder paste to make it adhere to the mounting components;
  • Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

Min LED Components Household Appliance SMT Machine 0402 Pick And Place Equipment 4
