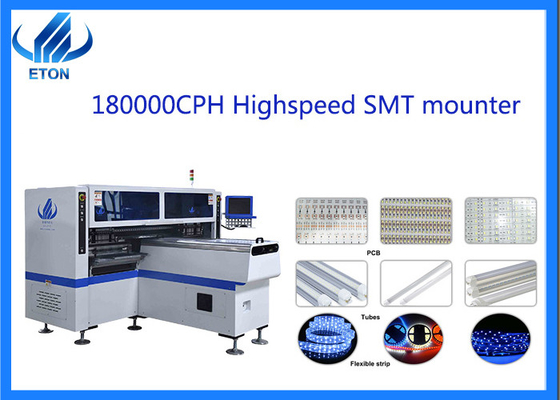

High Capacity SMT Mounting Machine for Rigid PCB and Flexible LED Strip chip mounter
Features
· Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
· Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
· Calibration automatically, high precision, available for RGB.
Machine parameter
| Model |
HT-F7S |
| Dimension |
2700*2300*1550mm |
| Total weight |
1700kg |
| PCB length width |
Max: 1200*330mm
Min: 100*100mm
|
| Mounting speed |
150000-180000 CPH |
| No. of feeders station |
68 PCS |
| No. of head |
34PCS |
SMT Line solution
Exhibition
ETON has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can
The advantages of HT-F7S led tube light making machine
1. HT-F7S, which has 34 heads, two mounting module, each mounting module has 17 heads;
2. HT-F7S, which has 68 PCS of feeder station, adopt electric feeder with double motor feeding way
3. HT-F7S, which Adopts group picking and group placing mounting mode, achieve high mounting speed;
4. HT-F7S, which has uesd the high-end magnetic linear motor and servo motor, stepper motor to ensure the mounting speed and mounting precision
5. HT-F7S, which has produced 4 types materials at the same time, for the Optimum mounting speed, it can reach 180000 CPH.
