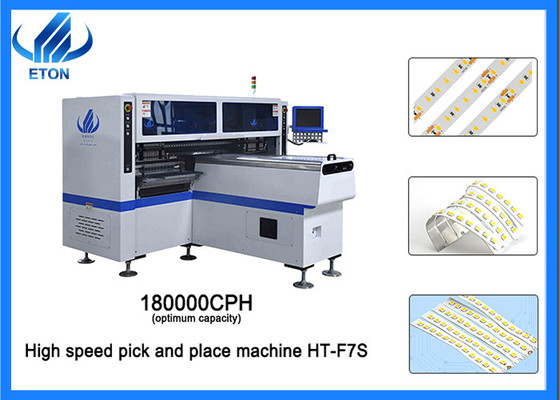

High Capacity SMT Mounting Machine for Rigid PCB and Flexible LED Strip chip mounter
Features
· Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
· Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
· Calibration automatically, high precision, available for RGB.
Machine parameter
| Model |
HT-F7S |
| Dimension |
2700*2300*1550mm |
| Total weight |
1700kg |
| PCB length width |
Max: 1200*330mm
Min: 100*100mm
|
| Mounting speed |
150000-180000 CPH |
| No. of feeders station |
68 PCS |
| No. of head |
34PCS |
SMT Line solution
For SMT peripheral equipment: it is mainly included automatic Loader machine, Automatic stencil printer machine, Semi automatic stencil printer machine, Conveyor machine, Pick and place machine, Reflow oven machine, Un-loader machine, testing machine( SPI, AOI, X-RAY ) etc.
All of our SMT pick and place machine and SMT peripheral equipment is supported to customize according to the requirement of customers
ETON Profile
1.We have our own industrial park with an area of 50,000 square meters, which is specially used to develop and manufacture various SMT equipment.
2.More than 15 years LED lighting field experiences , provide the most suitable SMT program to every client.
3.Has own professional R&D team, has Indian engineer, Indian office,Egypt engineer, etc. Can provide support promptly.
Exhibition
ETON has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
About SMT
SMT is widely used, and greatly promotes the miniaturization and multi-function of electronic products, and provides conditions for mass production and low defect rate.
SMT production assembly density is high, light weight, small size, high reliability, high frequency characteristics, high degree of automation, high production efficiency, low cost.
SMT technology is applied in many fields, in the assembly and connection of electronic products, communications, computers, aerospace technology, medical products, automotive, digital electronics, household appliances, office automation and so on. In the future, the application of SMT will only increase, with a wider range and more applications

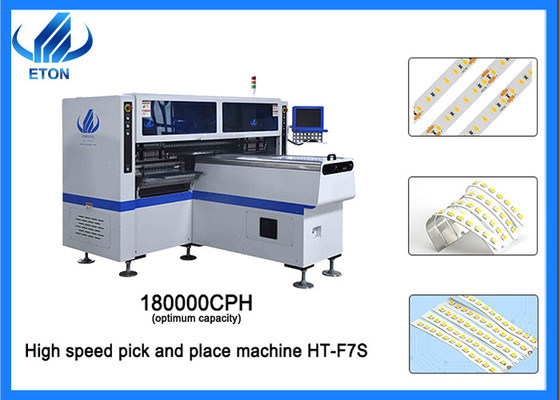

The advantages of HT-F7S led tube light making machine
1. HT-F7S, which has 34 heads, two mounting module, each mounting module has 17 heads;
2. HT-F7S, which has 68 PCS of feeder station, adopt electric feeder with double motor feeding way
3. HT-F7S, which Adopts group picking and group placing mounting mode, achieve high mounting speed;
4. HT-F7S, which has uesd the high-end magnetic linear motor and servo motor, stepper motor to ensure the mounting speed and mounting precision
5. HT-F7S, which has produced 4 types materials at the same time, for the Optimum mounting speed, it can reach 180000 CPH.
