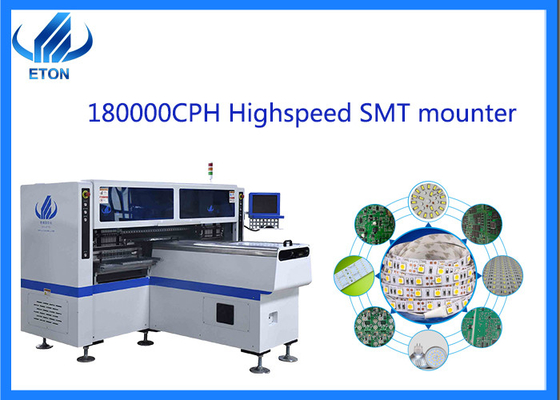

CE SMT Mounting Machine Automatic Feeding LED Batten Pick And Place Equipment

High Capacity SMT Mounting Machine for Rigid PCB and Flexible LED Strip chip mounter

Features

· Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.

· Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.

· Calibration automatically, high precision, available for RGB.

Machine parameter

SMT Line solution

SMT placement machine failure analysis ideas

1 Detailed analysis of the working order of the smt placement machine and the logical relationship between them.

2. Understand the location, link and extent of the fault, and whether there is any abnormal sound.

3 Understand the operation process before the failure occurs.

4 Whether it occurs on a specific placement head and nozzle.

5 occurs on a specific device.

6 whether it happens on a specific batch.

7 Whether it happened at a particular moment.

ETON Profile

Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.

Exhibition

ETON has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

Market

Our products had exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:

SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.

Shipping and Delivery

As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

FAQ

1. Does the price include the feeders or nozzles?

No, the price only includes the smt machine. Feeders and nozzles need to be purchased according to customer demand

2. Do you only provide smt machine?

We not only provide smt pick and place machine, but also provide smt peripheral equipment, including stencil printer, conveyor, reflow oven, loader&unloader, stocking conveyor, SPI, AOI etc.

3. What the products does the machine produce?

SMT machine is apply to all kinds of products, such as DOB, led bulbs, Led tube, strip lights, panel light, spot light, down lights, lens, electric board, power driver etc.

4. How is the package?

We use wooden box package according to the international standard.

5. What are the terms of payment?

We usually use EXW Shenzhen.

The advantages of HT-F7S led tube light making machine

1. HT-F7S, which has 34 heads, two mounting module, each mounting module has 17 heads;

2. HT-F7S, which has 68 PCS of feeder station, adopt electric feeder with double motor feeding way

3. HT-F7S, which Adopts group picking and group placing mounting mode, achieve high mounting speed;

4. HT-F7S, which has uesd the high-end magnetic linear motor and servo motor, stepper motor to ensure the mounting speed and mounting precision

5. HT-F7S, which has produced 4 types materials at the same time, for the Optimum mounting speed, it can reach 180000 CPH.
