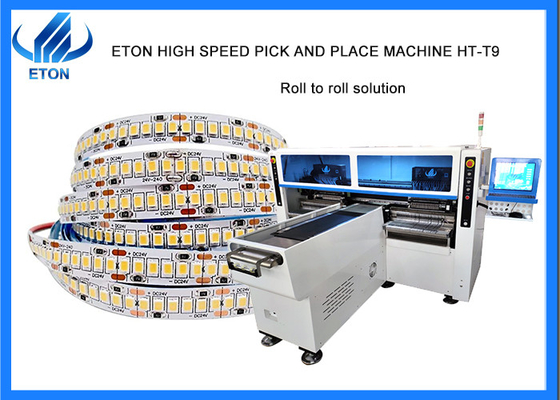

250000 cph high speed pick and place machine for flexible strip
Production description

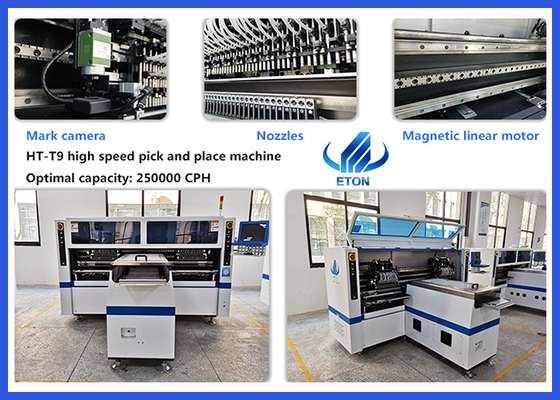

Dual arm magnetic linear high speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000 CPH.
Features
- Producing 4 types of materials at the same time with high capacity, available for 5m, 50m or any length of flexible strip and Roll to Roll.
- Dual arm four module, 17 nozzles for each mounting part, part A, part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for for RGB.
- Exclusive patent technology: Group to pick and group to mount.
Machine parameter
| Model |
HT-T9 |
| Dimension |
3100*2250*1650mm |
| Total weight |
1700kg |
| PCB length width |
250mm*any length |
| PCB thickness |
0.5-1.5mm |
| PCB clamping |
Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting mode |
Group picking and group placing |
| Mounting precision |
±0.02mm |
| Mounting speed |
20-25W CPH |
| No. of feeders station |
68PCS |
| No. of head |
68PCS |
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
FAQ
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
