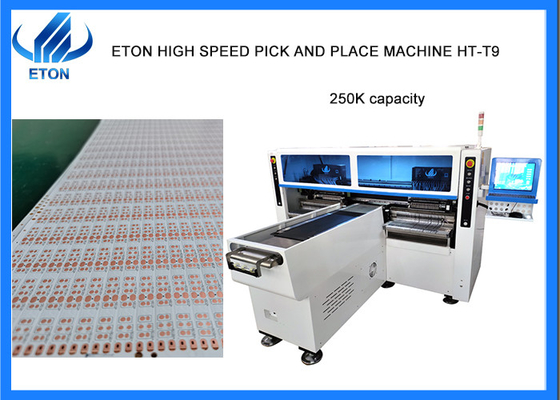

100M Long Strip SMT Placement Machine For Placing LED Chip And Resistor

100M Long Strip SMT Placement Machine For Placing LED Chip And Resistor
100M Long Strip SMT Placement Machine For Placing LED Chip And Resistor 100M Long Strip SMT Placement Machine For Placing LED Chip And Resistor

Large Image :  100M Long Strip SMT Placement Machine For Placing LED Chip And Resistor

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: HT-T9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Warranty: 1 Year Name: SMT Automatic Pick And Place Machine
Application: LED Any Length Of Flexible Strip Power Supply: 380AC 50HZ
Condition: New Product Name: Automatic SMT Pick And Place Machine
Weight: 1700KG Mounting Speed: 200000-250000 CPH
Dimension: 2700*2300*1550mm Pcb Thickness: 0.5-1.5mm
High Light:

Long Strip SMT Placement Machine

,

100M Strip SMT Placement Machine

,

Resistor smt placement equipment

Placing LED chip and resistor for 100M long strip SMT placement  machine

Production description

Dual arm magnetic linear high speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000 CPH.

Features


  • Producing 4 types of materials at the same time with high capacity, available for 5m, 50m or any length of flexible strip and Roll to Roll.
  • Dual arm four module, 17 nozzles for each mounting part, part A, part B can be mounted separately or synchronously.
  • Calibration automatically, high precision, available for for RGB.
  • Exclusive patent technology: Group to pick and group to mount.


Machine parameter


Model HT-T9
Dimension 3100*2250*1650mm
Total weight 1700kg
PCB length width 250mm*any length
PCB thickness 0.5-1.5mm
PCB clamping Vacuum adsorption, cylinder splint, adjustable track width
Mounting mode Group picking and group placing
Mounting precision ±0.02mm
Mounting speed 20-25W CPH
No. of feeders station 68PCS
No. of head 68PCS

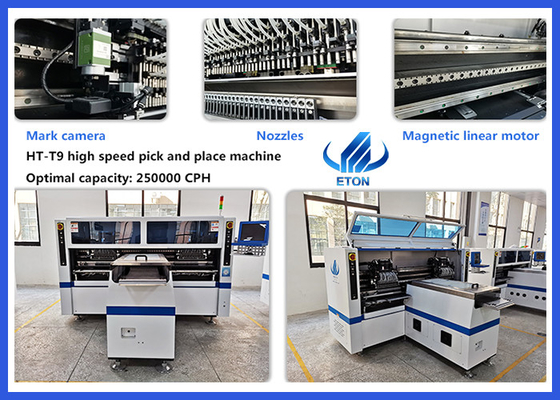

100M Long Strip SMT Placement Machine For Placing LED Chip And Resistor 0
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
100M Long Strip SMT Placement Machine For Placing LED Chip And Resistor 1
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
100M Long Strip SMT Placement Machine For Placing LED Chip And Resistor 2
Shipping and Delivery
100M Long Strip SMT Placement Machine For Placing LED Chip And Resistor 3
FAQ

Q. How is the differences of your multifunctional machine and high-speed machine?
A. The mounting mode of multifunctional and high speed machine which decides the range of their mounting products, and the mounting capacity is to distinguish this two types of the machine, such as multifunctional pick and place machine RT-1 with capacity of 40000 CPH, while high speed mounter machine HT-T9 with 250000 CPH capacity.

Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.


Q. How long is the machine maintenance period, whether it is free?

A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
