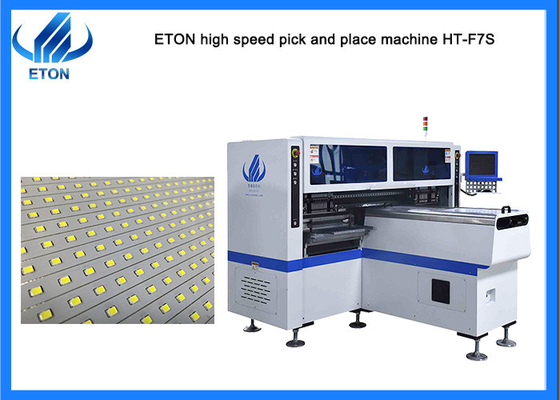

Dual module 68 PCS feeder Max1.2m PCB SMT pick and place machine
Features
- High-end magnetic linear motor+ servo motor
- Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials with high capacity. available for board with any proportion of LED chip and resistor.
- Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Exclusive patent technology: Group to pick and group to mount
IPC9850 Capacity: 150000-180000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Technical parameter
| Model |
HT-F7S |
| Total Weight |
1700kg |
| PCB |
| PCB Length Width |
Max:1200*330mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| Mounting Precision |
±0.02mm |
| Mounting Height |
≦5mm |
| Mounting Speed |
150000~180000 CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Speed |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of nozzles |
34 PCS |
| Power |
380AC 50 HZ |
| Power Consumption |
6kw |
| Transmission Speed |
Max Length :1200 mm |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor+ servo motor |
| Feeding way |
Electric feeder with double motor |

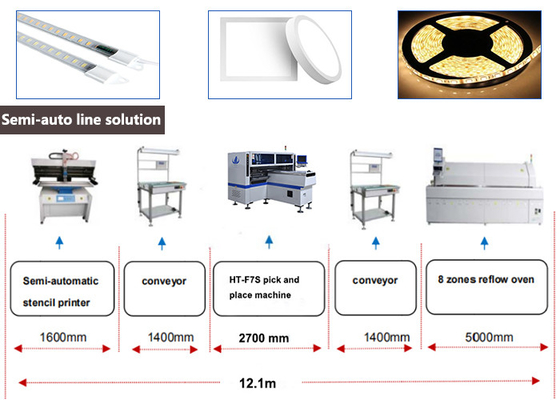

SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
