Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | LED Strip, Tube, Panel Light |
|---|---|---|---|
| Power Supply: | 380AC 50HZ | Condition: | New |
| Product Name: | Automatic SMT Pick And Place Machine | Weight: | 1700KG |
| Mounting Speed: | 150000-180000 CPH | Dimension: | 2700*2300*1550mm |
| Pcb Thickness: | 0.5-5 Mm | ||
| High Light: | CE Surface Mount Pick And Place Machine,Group Mount Pick And Place Machine,Pick Place Machine For LED Panel |
||

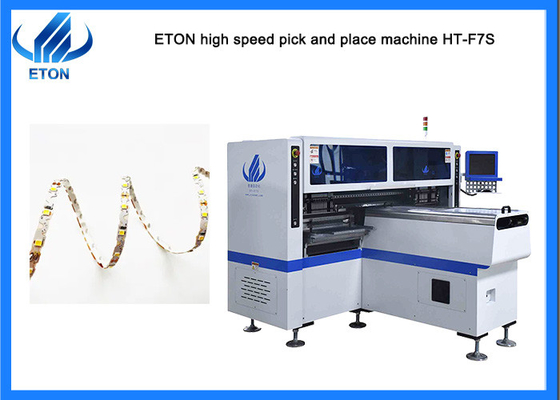

Group mount LED tube panel light Surface mounted pick and place machine
Features
IPC9850 Capacity: 150000-180000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Technical parameter
| Model | HT-F7S |
| Total Weight | 1700kg |
| PCB | |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| Mounting Precision | ±0.02mm |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Speed | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of nozzles | 34 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Transmission Speed | Max Length :1200 mm |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Electric feeder with double motor |

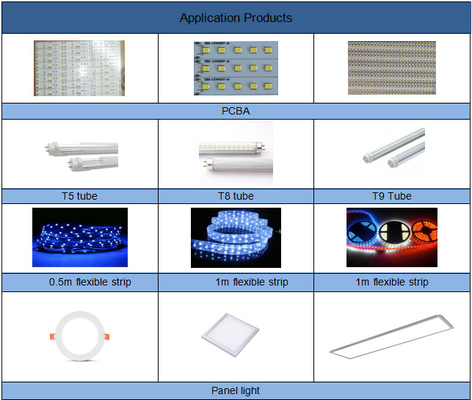

Machine application
Application: apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. And also suitable for mounting tube, panel light ,bulb etc.
PCB size: Max:1200*330mm;Min:100*100mm.
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Our advantage
FAQ
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q.What kind of machine you have?
A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
