Double Module SMT Machine For All LED Lights
Description
Do you want to produce more diversified products?
Is the PCB size larger than the mounting range of the machine?
Do you want to use one machine to produce two products at the same time?

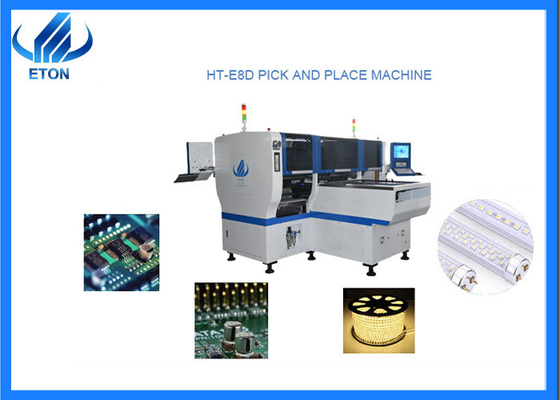

One module HT-E8D could solve all of these problems!
HT-E8D of Technical Parameter
| Dimension |
3150*2250*1650mm |
| PCB Size |
Max: 1200*300mm Min: 100*100mm |
| PCB Thickness |
0.5~5mm |
| Mounting mode |
Group picking and separately placing,separately picking and separately placing |
| Mounting precision |
±0.04mm |
| Mounting height |
<15mm (Automatic changing) |
| Mounting speed |
90000 CPH |
| No.of camera |
4 sets Vision for the flight identification, Mark correction |
| Components space |
0.2mm |
| No.of feeders station |
48 PCS |
| No.of head |
24 PCS |
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Pick and place machine: Mount the electronic component at the specified position on the PCB.
Reflow oven: Melt the solder paste and fix it to the mounting element.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
Product application
Applications: all kinds of led lights LED bulbs, DOB, lens, led tube, led strip, down light, table light, spot light, ceiling light, panel light, electric board, power driver etc.
Components: led chips, resistor, capacitor, bridge rectifiers, IC, lens, shaped components etc.
Company profile
Shenzhen ETON Automation Equipment Co., Ltd., founded in 2011, is a provider focusing on the R & D, production and sales of SMT high-speed mounter and SMT peripheral automation equipment, as well as the manufacturing and process scheme of garment production. The company has SMT high-speed Mounter business unit, precision solder paste printing equipment business unit, high-speed precision dispensing defense business unit and SMT peripheral automatic makeup equipment business unit.
Packaging&Service
Vacuum packaging and wooden cases
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
Q: What’s your operating system?
A: Our operating system is windows 7.
Q: If I have any questions that I don’t understand, can I ask you at any time?
A: Yes. If you have any questions, please don’t hesitate to ask me. We have local engineers and office in India and Egypt, can help u very convenient.
