Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 40000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Feeders: | 48 |
| High Light: | Speed Double Module SMT Mounting Machine,LED batten making SMT Mounting Machine,LED batten making pick place machine |
||

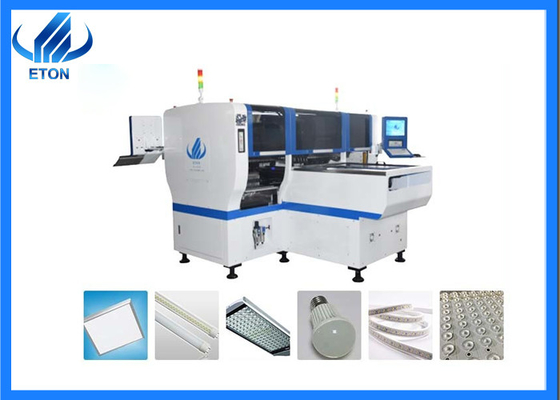

Double Module SMT Machine For All LED Lights
Description
Do you want to produce more diversified products?
Is the PCB size larger than the mounting range of the machine?
Do you want to use one machine to produce two products at the same time?
One module HT-E8D could solve all of these problems!
HT-E8D of Technical Parameter
| Dimension | 3150*2250*1650mm |
| PCB Size | Max: 1200*300mm Min: 100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm (Automatic changing) |
| Mounting speed | 90000 CPH |
| No.of camera | 4 sets Vision for the flight identification, Mark correction |
| Components space | 0.2mm |
| No.of feeders station | 48 PCS |
| No.of head | 24 PCS |
Product application
Applications: all kinds of led lights LED bulbs, DOB, lens, led tube, led strip, down light, table light, spot light, ceiling light, panel light, electric board, power driver etc.
Components: led chips, resistor, capacitor, bridge rectifiers, IC, lens, shaped components etc.
ETON also has 3 local engineers in India, 3 local engineers in Egypt etc. who can Provide Free installation and free training.
ETON has own intelligent industrial park in Jiangxi and office in Shenzhen with 5200 square meter workshop, 7 buildings, 500 employees .
The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
ETON is the top manufacturer of smt Pick and place machine, also produce the /reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
ETON has the mature experience of helping to set up led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc factory in China and foriegn.
Vacuum packaging and wooden cases
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
Q: How can you make sure that the products won’t be damaged or wet?
A: We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
Q: How is the breakdown rate of machine?
A: our machine is very stable,the breakdown rate is less than 0.001.
Q: What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, etc.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
