Product Details:
Payment & Shipping Terms:
|
| PCB Size: | 50-700mm | Conveyor Belt Height: | 900±20MM |
|---|---|---|---|
| Temperature Control Method: | PID+SSR | Warranty: | 1 Year |
| Applicable Components: | CSP、BGA、μBGA、0201chip Single/double Panel | Name: | SMT 10 Zones Reflow Oven Machine |
| Application: | LED Lights, Electrical Products, Household Appliance | Condition: | New |
| High Light: | Max 700mm SMT Reflow Oven,Max 700mm Reflow Oven Machine,High Efficient SMT Reflow Oven |
||

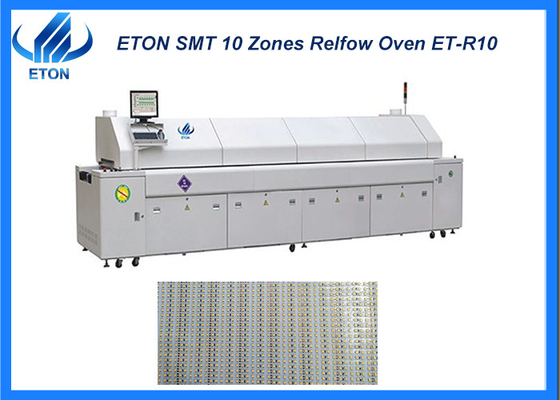

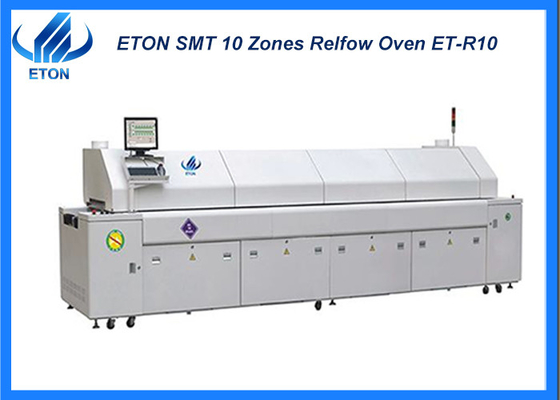

Max PCB size 700mm 10 zones SMT efficient reflow oven machine
Description
Unique advanced long-life heating system
Adopt American HELLER world leading hot air circulation heating method, high-efficiency pressurized accelerating air duct, greatly increase circulating hot air flow, rapid temperature rise (about 20 minutes), high thermal compensation efficiency, high temperature welding and curing can be carried out; each temperature zone is set There are independent temperature sensing sensors, real-time monitoring and compensation of the temperature balance of each temperature zone; special pressurized air transport structure and special-shaped heating wire design, no noise, no vibration, with high heat exchange rate, The temperature difference it is extremely small between BGA bottom and PCB board, which is most in line with the strict requirements of lead-free process, especially for lead-free products with difficult soldering requirements.
Machine main parameter
| Technical parameter: | |
| NO. of heating zone | 10 hot air circulation heating zones on the top and 10 hot air circulation heating zones on the bottom. |
| heating method | Flat-wound heating wire on both sides, pressurized air duct, point-to-point variable frequency motor heat exchange method, variable frequency motor drive |
| Length of heating zone | 3900MM |
| NO. of cooling zone | 2(Natural air cooling system) |
| Length of cooling zone | 1100MM |
| Conveyor belt width | 700MM |
| PCB size | 50-700mm |
| PCB height | Up:25mm down:20mm max:45mm |
| Transport direction | left-right(right-left) Optional |
| Delivery method | Mesh belt +Chain |
| Conveyor belt height | 900±20MM |
| PCB transportation speed | 0～1.8m/min |
| PCB temperature deviation | ±2℃ |
| Temperature control method | ±1-2℃(Static) |
| Temperature control range | Room temperature～350℃ can be set |
| Applicable solder type | Lead-free solder/leaded solder |
| Temperature control method | PID+SSR |
| Types of components used | CSP,BGA,μBGA,0201chip Single/double panel |
Market
As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:
Machine application
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q.Can I pay by L/C.
A.The procedure of L/C payment is complicated, which will waste a lot of time on payment. For more, you need to wait longer to get the machine, which will delay your production plan and delay the opportunity.
