Product Details:
Payment & Shipping Terms:
|
| Usage: | Solder Paste Printing Machine | Name: | ET-S1500 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 420 Kg |
| Application: | LED Lights, Electrical Products, Household Appliance | Power Supply: | 220V Single Phase, 50/60 HZ |
| Condition: | New | Pcb Size: | 1500*300MM |
| High Light: | Tube Light SMT Printing Machine,Light Strip SMT Printing Machine,1.5m LED smt printer machine |
||

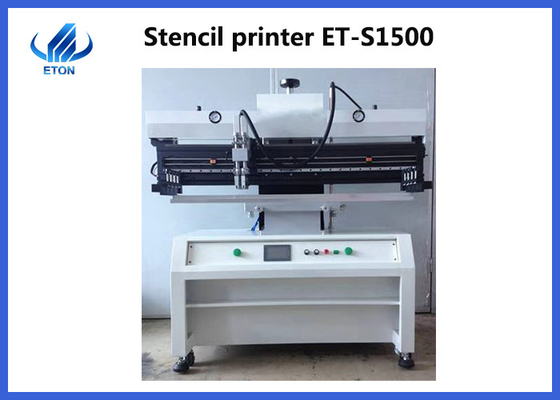

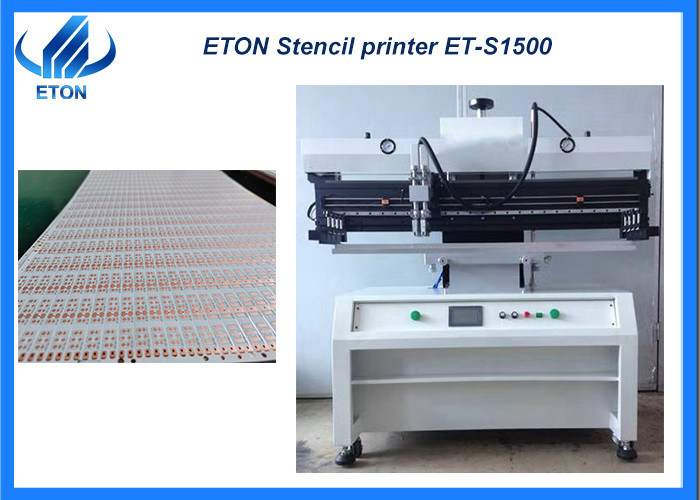

Solder paste SMT 1.5m length tube light strip printing machine
Features:
(1) the governor motor drive scraper, combining precision linear guide, ensure the printing precision;
(2) printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
(3) the scraper holder can adjust forward and backward, to select the suitable printing position;
(4) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
(5) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
(6) can be set unidirectional and bidirectional multiple printing methods.
| Model | ET-S1500 |
| Printing area: | 1500×300 mm |
| Plate Area: | 1550×320 mm |
| Stencil Frame Size: | 470×370 mm～1300×550 mm (L×W) |
| Positioning way: | positioning pin |
| Scraper Speed: | 0-100 mm/sec |
| Power: | 220V single phase, 50/60 HZ |
| Power Consumption: | 120 W |
| PCB plate thickness: | 0.2-2.0 mm |
| Plate Trimming: | Front/back +/- 10mm Right/Left +/- 10mm |
| Printing Precision: | +/- 0.05 mm |
| Air supply: | 5-7 KGF/cm2 |
| Weight: | 420 kg |
| Dimension: | (L)1600 x(W)900 x(H)1650 mm |
Market
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Q. Can I use CIF price?
A. CIF price need add the freight and insurance fee, while for the part of EXW which is cheaper and convenient factor as a suitable price for both sides.
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
