Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine | Mounting Speed: | 90000 CPH |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Feeders: | 48 |
| Tape Width: | 24mm,8mm,12mm | ||
| High Light: | SMT LED Chip Mounter CCC,0402 components LED Chip Mounter,90000CPH PCB Assembly Machine |
||

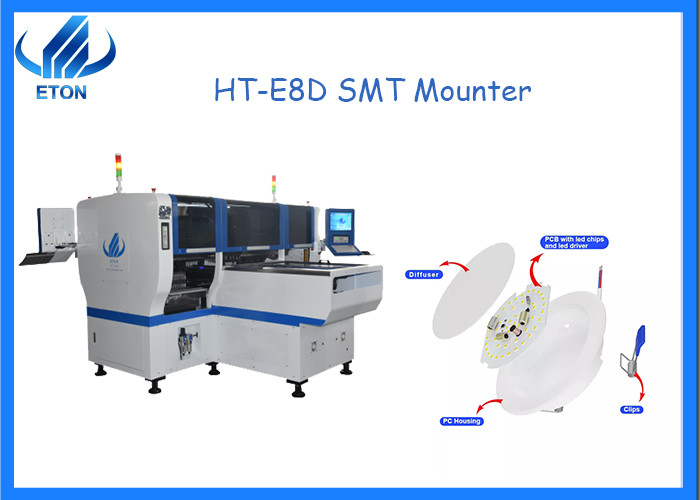

Dual System Multifunctional Pick & Place Machine - HT-E8D-1200 90000CPH
Production Introduction of Pick And Place Machine HT-E8D-1200
HT-E8D-1200 dual module multifunctional pick and place machine can produce two different products at same time taking the mounting mode of group picking and separately placing, separately picking and separately placing. It's feeding way is electric feeder with double motor with 24 PCS of head and 48 PCS of feeders station capacity can reaches 90000 CPH.
HT-E8D of Technical Parameter
| Dimension | 3150*2250*1650mm |
| PCB Size | Max: 1200*300mm Min: 100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm (Automatic changing) |
| Mounting speed | 90000 CPH |
| No.of camera | 4 sets Vision for the flight identification, Mark correction |
| Components space | 0.2mm |
| No.of feeders station | 48 PCS |
| No.of head | 24 PCS |
Product introduction
(1) HT-E8D-1200:Double-module magnetic motor multifunctional pick and place machine.
(2) Dual system, dual module multifunctional mounter to produce two different products at the sane time.
(3) Mounting components: LED chip,capacitors,resistors,IC,shaped components,etc.
(4) Component: min.size 0402 max.height 15mm
(5) Application: Power driver. Electric board. Lens. DOB bulb linear bulb. Household appliance etc.
(6) Mounting speed reached 90000 CPH.
Production Line
we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, glue dispenser, etc.
Company profile
Shenzhen ETON Automation Equipment Co.,Ltd.Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.,
(1)Experience: It has more than ten years of research and development experience and LED industry service experience.
(2)Industrial park: With an industrial park of 50,000 square meters, focusing on the R&D and production of the SMT industry.
(3)Large market: South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil more than 20 countrie.
(4)We are high-tech enterprise, with CCC, SIRA, CE. and rated as “Shenzhen high-tech enterprise
“China high-tech enterprise” “Shenzhen top brand” “2015 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” etc.
Packaging
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
Service
Service
Maintenance period 1 year
One year warranty. during warranty. any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Can you provide a whole line solution?
Yes , we can. We can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machine can be customize.
Do you have oversea after sale service?
Yes, we can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation. If you still have any questions, please contact us by e-mail, wechat, phone, Skype,Whatsapp or other contact information.
How long the delivery?
About 30 days.
