ETON SMT placemant machine With 90000CPH for led DOB making chip mounter

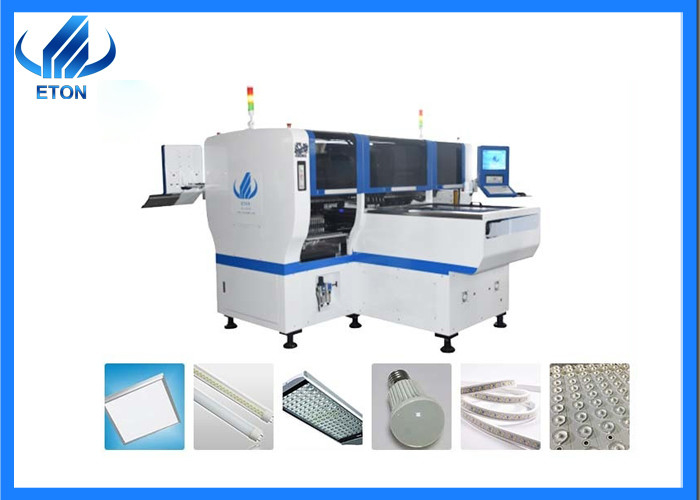

Production Introduction of Pick And Place Machine HT-E8D-1200
HT-E8D-1200 dual module multifunctional pick and place machine can produce two different products at same time taking the mounting mode of group picking and separately placing, separately picking and separately placing. It's feeding way is electric feeder with double motor with 24 PCS of head and 48 PCS of feeders station capacity can reaches 90000 CPH.
HT-E8D of Technical Parameter
| Dimension |
3150*2250*1650mm |
| PCB Size |
Max: 1200*300mm Min: 100*100mm |
| PCB Thickness |
0.5~5mm |
| Mounting mode |
Group picking and separately placing,separately picking and separately placing |
| Mounting precision |
±0.04mm |
| Mounting height |
<15mm (Automatic changing) |
| Mounting speed |
90000 CPH |
| No.of camera |
4 sets Vision for the flight identification, Mark correction |
| Components space |
0.2mm |
| No.of feeders station |
48 PCS |
| No.of head |
24 PCS |
Production Line
we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, glue dispenser, etc.
Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 30 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
Packaging
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
Service
Service
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
Can you provide a whole line solution?
Yes , we can. We can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machine can be customize.
Q: What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, etc.
How long the delivery?
About 30 days.
