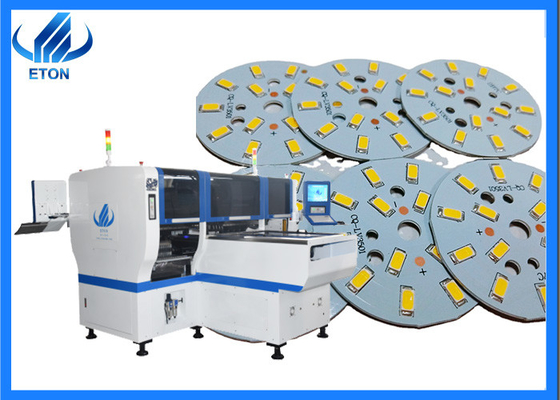

ETON SMT placemant machine With 90000CPH for led DOB making chip mounter
Production Introduction of Pick And Place Machine HT-E8D-1200
HT-E8D-1200 dual module multifunctional pick and place machine can produce two different products at same time taking the mounting mode of group picking and separately placing, separately picking and separately placing. It's feeding way is electric feeder with double motor with 24 PCS of head and 48 PCS of feeders station capacity can reaches 90000 CPH.
HT-E8D of Technical Parameter
| Dimension |
3150*2250*1650mm |
| PCB Size |
Max: 1200*300mm Min: 100*100mm |
| PCB Thickness |
0.5~5mm |
| Mounting mode |
Group picking and separately placing,separately picking and separately placing |
| Mounting precision |
±0.04mm |
| Mounting height |
<15mm (Automatic changing) |
| Mounting speed |
90000 CPH |
| No.of camera |
4 sets Vision for the flight identification, Mark correction |
| Components space |
0.2mm |
| No.of feeders station |
48 PCS |
| No.of head |
24 PCS |
Production Line
we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, glue dispenser, etc.
Company profile
ETON Automation Equipment Co., Ltd.is a professional manufacturer focusing in pick and place machine. Right now, we have integrated R&D, production and sales together.
Quality assurance
ETON has more than 10 years of R & D experience in the SMT industry. It has its own R &D team. It has a very strict quality control department in the R & D process from product selection to machine manufacturing. It is very reliable for the quality of our machines. Our machine components are all top brands, such as Hikvision cameras, and German igus drag chains.
Packaging
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
Service
Service
1. Maintenance period:1 year
2. Provide free online training and remote guidance
3. oversea and local engineer and office provide free installation and training door-to-door
4. Software is R&D independently by ETON, provide free upgrade whole lifetime
5. Make regular return visits to collect customer information and provide customers with the latest production technology and equipment information regularly
Market share
In China, ETON helps 80% of people build factories, such as ople, MLS, NVC, etc. of course, we have hundreds of machines sold abroad every year, such as India, Egypt, Turkey, Pakistan, Algeria, Iran, Vietnam, etc. Surya, calcom, polycab, rangdong, rk, etc. are all our customers.
FAQ
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
