High Speed Chip Shooter LED SMT Machine SMD LED chip mounter

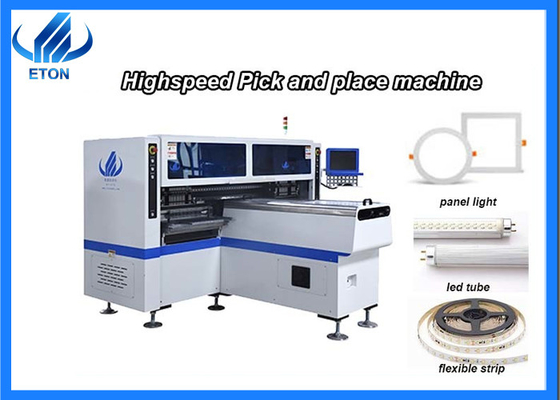

What is Pick and Place Machine?
Automatic Positioning Machine is used to realize high speed, high precision and automatic positioning of components. It is the most important and complex equipment in the whole SMT production. The machine position is really an industrial precision robot. Through the function of absorption-transfer-position-position, without damaging components and printed circuit boards, it realizes fast and accurate mounting of SMC/SMD components to the processes Specify the Pad position on the PCB Board.
l Apply to the 0.6m, 0.9m,1.2m(0~1.2m)LED hard light Board and LED Strip (Rope Light) etc.
l Apply to LED Strip flexible and hard tube board, panel etc.
Technical Parameter
| HT-F7S |
Specifications |
| Length Width Height |
2700*2450*1530mm |
| PCB Length Width |
MAX:1200*330mm
MIN:50*50mm
|
| PCB Thickness |
0.5 ~ 5mm |
| Mount Mode |
Group to have and group to bond |
| Not available. of Camera |
5 sets of imported cameras |
| System Vision |
Vision link, Mark correction |
| Precise Mounting |
± 0.02mm |
| Installation Height |
15±2Mm |
| Mounting Speed |
150000 ~ 170000CPH |
| Element |
LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc. |
| Speed Components |
0.2mm |
| Eat Station |
68PCS |
| Not available. of the Nozzles |
34PCS |
| Electrical control |
Independently researched and developed by ETON |
| Modular Motion Control Card 1 Set |
Independently researched and developed by ETON |
| XY Shaft Drive Way |
High-grade magnetic linear motor and servo motor |
| How to eat |
Power feeder with dual motors |
♦ Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service.
1.We have our own industrial park with an area of 50,000 square meters, which is specially used to develop and manufacture various SMT equipment.
2.More than 15 years LED lighting field experiences , provide the most suitable SMT program to every client.
3.Has own professional R&D team, has Indian engineer, Indian office,Egypt engineer, etc. Can provide support promptly.
♦ Our company has obtained 9 invention patents, 12 software Copyrights and 112 practical patents
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
FAQ
Q. What services can you provide?
A.
1)We provide whole line solution for our clients;
2) We have local engineers in India, Egypt, Turkey. As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learned how to operate the machine, our service is very convenient;
3) We also have Chinese engineers which provide online services to operate the machine to solve the problems with the machine;
4) We will visit our clients for twice a year to operate the machine and view the status of the machine;
5) Our clients enjoy a free up grade of the machine.
Q. Does your machines have quality certificates?
A. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 11 years) in LED light production line program.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
