Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | UD390 |
|---|---|---|---|
| PCB Thickness: | 0.4-0.3 Mm | Weight: | 240KG |
| Usage: | PCB Unloader | Application: | LED Lights, Electrical Products, Household Appliance |
| Dimension: | 2250*1010*1200 Mm | Condition: | New |
| High Light: | Circuit Board PCB Unloader,Reliable PCB Unloader,PCB Unloader SMT Prodcution Line |
||

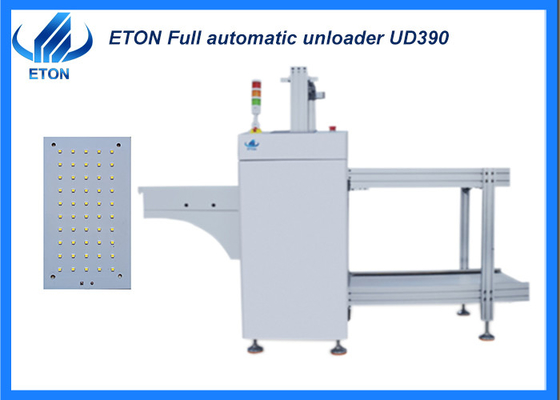

Save labor more reliable circuit board PCB un-loader in SMT prodcution line
Machine main features
1. The device of unloading PCB in the SMT production line;
2. PLC control, color man-machine interface operation;
3. Adopting the structure of steeping motor to push the board, the force and speed of the pushing board can be adjusted;
4. Auxiliary positioning brake system, accurate positioning, fast rising and falling speed, high production efficiency;
5. Multiple electric distribution circuit protection, safe and reliable;
6. Acousto-optic alarm system, abnormal information text prompt, easy operation and maintenance.
7. Standard SMEMA signal communication mode.
| Description | This equipment is used for the lowering operation of the circuit board in the production line |
| Number of turnover frame | One box on working, two boxes out of frame segment, two boxes into the frame segment(or customer specified) |
| Send board time | Around 6 s |
| Frame change time | Around 25 s |
| PCB thickness | 0.4-0.3 mm |
| Transmission height | 900±20 mm |
| PCB size | 80*50-510*390 mm |
| Dimension | 2250*1010*1200 mm |
| Size of turnover frame | 535*460*570 mm |
| Approximate weight | About 240 KG |
| Transmission direction | Left-right, right-left |
| Air pressure and air flow | 4-6 Bar, up to 1L/min |

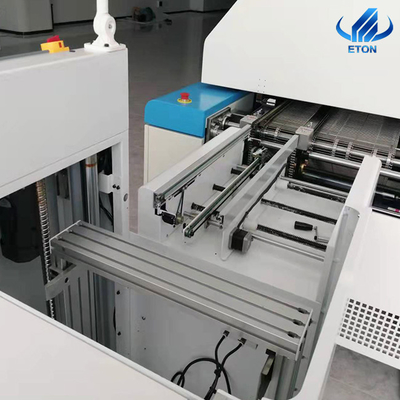

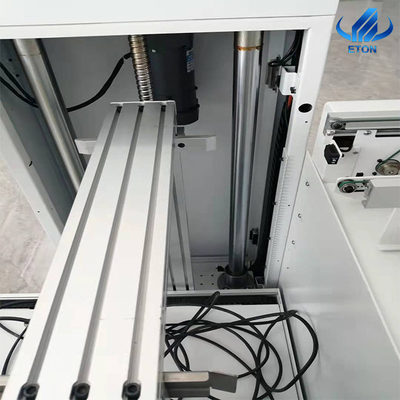

Machine main part
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
