Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | UD390 |
|---|---|---|---|
| PCB Thickness: | 0.4-0.3 Mm | Weight: | 240kg |
| Usage: | PCB Unloader | Application: | LED Lights, Electrical Products, Household Appliance |
| Dimension: | 2550*1650*1550mm | Condition: | New |
| High Light: | PCB mounting Unloader Machine,SMT Line Unloader Machine,240KG Unloader Machine |
||

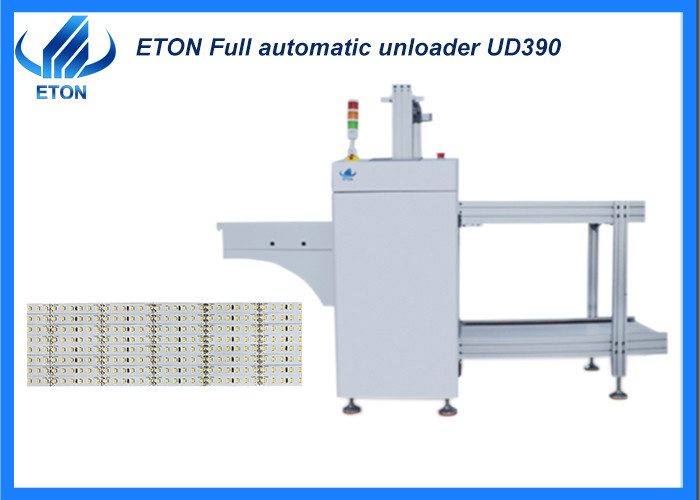

PCB mounting final part SMT line about 240KG un-loader machine
Description
1. The device of unloading PCB in the SMT production line;
2. PLC control, color man-machine interface operation;
3. Adopting the structure of steeping motor to push the board, the force and speed of the pushing board can be adjusted;
4. Auxiliary positioning brake system, accurate positioning, fast rising and falling speed, high production efficiency;
5. Multiple electric distribution circuit protection, safe and reliable;
6. Acousto-optic alarm system, abnormal information text prompt, easy operation and maintenance.
7. Standard SMEMA signal communication mode.
| Description | This equipment is used for the lowering operation of the circuit board in the production line |
| Number of turnover frame | One box on working, two boxes out of frame segment, two boxes into the frame segment(or customer specified) |
| Send board time | Around 6 s |
| Frame change time | Around 25 s |
| PCB thickness | 0.4-0.3 mm |
| Transmission height | 900±20 mm |
| PCB size | 80*50-510*390 mm |
| Dimension | 2250*1010*1200 mm |
| Size of turnover frame | 535*460*570 mm |
| Approximate weight | About 240 KG |
| Transmission direction | Left-right, right-left |
| Air pressure and air flow | 4-6 Bar, up to 1L/min |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Our Exhibitions
Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
