LED Chip Mounter For LED Rigid PCB Board 180000CPH Making SMT Machine

LED Chip Mounter For LED Rigid PCB Board 180000CPH Making SMT Machine
LED Chip Mounter For LED Rigid PCB Board 180000CPH Making SMT Machine

Large Image :  LED Chip Mounter For LED Rigid PCB Board 180000CPH Making SMT Machine

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: HT-F7S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Applicable Components: 0805,0603,1206
Name: SMT Pick And Place Machine Application: SMT Production Line,for SMT Machine
Condition: New,100% Original,Brand-new Mounting Speed: 180000 CPH
Type: Automatic Usage: SMT Mounting Machine,LED
Highlight:

180000CPH SMT Machine

,

SMT Machine LED chip Mounter

,

LED Chip Mounter For Rigid PCB

High Speed Chip Shooter LED SMT Machine SMD LED chip mounter



What is Pick and Place Machine?

Automatic Positioning Machine is used to realize high speed, high precision and automatic positioning of components. It is the most important and complex equipment in the whole SMT production. The machine position is really an industrial precision robot. Through the function of absorption-transfer-position-position, without damaging components and printed circuit boards, it realizes fast and accurate mounting of SMC/SMD components to the processes Specify the Pad position on the PCB Board.



High Speed SMT LED Chip Shooting Machine Choose and Place the Best Smd Led Chip Mounter Machine

l Apply to the 0.6m, 0.9m,1.2m(0~1.2m)LED hard light Board and LED Strip (Rope Light) etc.

l Apply to LED Strip flexible and hard tube board, panel etc.

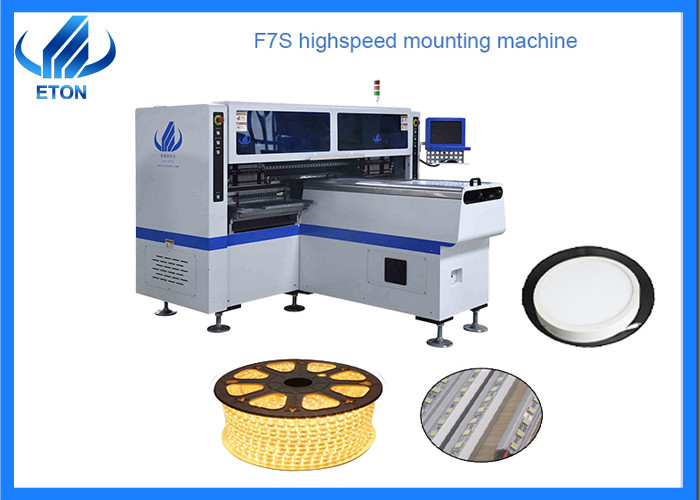

LED Chip Mounter For LED Rigid PCB Board 180000CPH Making SMT Machine 1

Technical Parameter

HT-F7S Specifications
Length Width Height 2700*2450*1530mm
PCB Length Width

MAX:1200*330mm

MIN:50*50mm


PCB Thickness 0.5 ~ 5mm
Mount Mode Group to have and group to bond
Not available. of Camera 5 sets of imported cameras
System Vision Vision link, Mark correction
Precise Mounting ± 0.02mm
Installation Height 15±2Mm
Mounting Speed 150000 ~ 170000CPH
Element LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc.
Speed Components 0.2mm
Eat Station 68PCS
Not available. of the Nozzles 34PCS
Electrical control Independently researched and developed by ETON
Modular Motion Control Card 1 Set Independently researched and developed by ETON
XY Shaft Drive Way High-grade magnetic linear motor and servo motor
How to eat Power feeder with dual motors



High Speed SMT LED Chip Shooting Machine Choose and Place the Best Smd Led Chip Mounter Machine♦ We have our own industrial park,equipped with and advanced processing and manufacturing center,strict quality control,and standardize production,streamline production processes.and there is the fastest machine in the world,the capacity reach 25W CPH.



♦ We also have many exhibitions, such as the domestic Shanghai Munich exhibition, and foreign India Delhi exhibition, India Mumbai exhibition, Pakistan exhibition, Turkey exhibition, Thailand exhibition and so on



LED Chip Mounter For LED Rigid PCB Board 180000CPH Making SMT Machine 3

Our after-sales service

  • Free installation:provide free installation to ensure smooth production
  • Free warranty:1 year warranty factory service ,during the period,free replacement of spare parts
  • Free training:professional training of operating and maintenance
  • Free Technical Support:7*24 hours technical online support
  • Free software upgrade:offer free software upgrade whole lifetime.



High Speed SMT LED Chip Shooting Machine Choose and Place the Best Smd Led Chip Mounter Machine

LED Chip Mounter For LED Rigid PCB Board 180000CPH Making SMT Machine 5



FAQ

Q:What's about the guarantee of the machines?



A:The maintenance:1 year whole machine,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.



Do you have oversea after sale service?



A:We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.



Q:Does your machines have quality certificates?



A:We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.



Q:How is the training?



A:After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.





Transportation advantage

  • By sea: it’s convenience,cheapness,and strong carrying capacity
  • By railway: it’s economical and affordable,with large transportation capacity,which is more suitable for inland countries.
  • By air: it’s convenient and fast,which is more suitable for urgent items.
