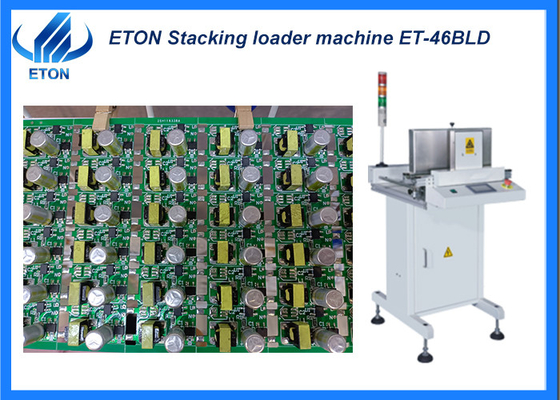

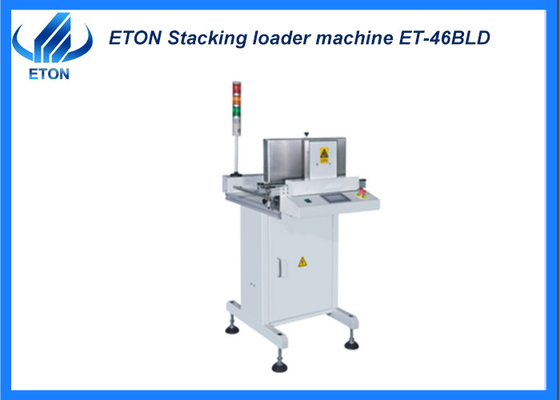

7 Mm Flat Belt Stacking machine For PCB , SMT PCB Magazine Production Line

7 Mm Flat Belt Stacking machine For PCB , SMT PCB Magazine Production Line
7 Mm Flat Belt Stacking machine For PCB , SMT PCB Magazine Production Line 7 Mm Flat Belt Stacking machine For PCB , SMT PCB Magazine Production Line

Large Image :  7 Mm Flat Belt Stacking machine For PCB , SMT PCB Magazine Production Line

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: ET-46BLD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Name: SMT Stacking Loader Machine
Application: LED Lights, Electrical Products, Household Appliance Process Height: 900 ± 20 Mm
Condition: New Product Name: ET-46BLD
Weight: 200Kg Dimension: L600*W650*H1200 Mm
Pcb Thickness: Min 0.6mm
High Light:

7 Mm Belt Stacking machine

,

Flat Belt Stacking machine

,

PCB Magazine Stacking machine

Stacking for PCB 7 mm flat belt SMT PCB magazine production line



Description

Model ET-46BLD
Dimension L600*W650*H1200 mm
Board Size 50*50-530*460 mm
Board loading Approx 10 sec
Process height 900 ± 20 mm
Flow direction L→R or R→L
Board thickness Min 0.6mm
Step distance 20 mm or Customized
Board capacity Customized
Weight 200kg
Power requirement 400pcs
Air requirement 0.4-0.6 Mpa;Max 30L/min
  • Suitable for pcb in smt production line
  • Steel structure, strong and stable mechanical design
  • Stepper motor control, nonstop sent board function
  • 7 mm flat belt for conveyor belt
  • Moving parts use air cylinder and solenoid valve
  • Mitsubishi programmable control card, three sensors
  • Real-time fault monitoring
  • Standard SMEMA

Our advantage

  • Focusing on SMT high speed pick and place machine more than 20 years
  • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

7 Mm Flat Belt Stacking machine For PCB , SMT PCB Magazine Production Line 0

Packages

Step 1: Packing in film package to prevent dust and water to the machine

Step 2: Packing in foam cotton to protect the outside of the machine

Step 3: Packing in vacuum package to keep dry of the machine during transportation

Step 4: Transportation by truck to specified port

7 Mm Flat Belt Stacking machine For PCB , SMT PCB Magazine Production Line 1



Related machine

We can provide a whole SMT production line,led light production line:

1.Pick and place machine

2. Loader machine

3. Conveyor machine

4. Stencil printer machine

5. Reflow oven machine

6. Unloader machine

7. Solder paste mixer

8. Roll to roll led strip light assembly machine

7 Mm Flat Belt Stacking machine For PCB , SMT PCB Magazine Production Line 2

FAQ

Q. What services can you provide?

A.

  • We provide whole line solution for our clients;
  • We have local engineers in India, Egypt, Turkey. As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learned how to operate the machine, our service is very convenient;
  • We also have Chinese engineers which provide online services to operate the machine to solve the problems with the machine;
  • We will visit our clients for twice a year to operate the machine and view the status of the machine;
  • Our clients enjoy a free up grade of the machine.



Q.What kind of machine you have?

A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
