Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle | Power Supply: | AC220V 50Hz |
|---|---|---|---|
| Warranty: | 1 Year | Dimension: | 1490*2020*1650mm |
| Mounting Speed: | 48000CPH | Mounting Height: | <16mm |
| Total Weight: | 2100kg | Condition: | 100% Original,Brand-new |
| Applicable Components: | 0402,0805,0603,1206,SOP | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| High Light: | Full automatic screen making machine,SMT LED Display Screen Making Machine,Full Automatic DOB Bulbs Making Machine |
||
High-speed multi integrated machine ,Breaking Through industry conventions,Greatly improving mounting speed ,accuracy stability.
X,Y and Z axis adopt selt-developed high-end magnetic linear motor
Flexible PCB handing capabilities,multi-station,multi-material mouning
Y axis Adopt double double drive gantry structure
Support automatic replacement nozzle function(option)
Apply to 0402~35*35mm components need to option fixed camera
Thechnical Parameter of SMT Machine
| Model | KT10S |
| Dimension | |
| Length | 1490mm |
| Width | 2020mm |
| Height | 1650mm |
| Total Weight | 2080kg |
| PCB | |
| PCB Length Width | Max:500*450mm(1200*450 option) Min:50*50mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 1 PCS (Head flight vision camera) |
| 1PCS Mark camera | |
| Mounting Precision | CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height | ≦16mm |
| Mounting Speed | 48000 CPH(Under best condition) |
| Components | LED , capacitors, resistors, shaped components, etc. |
| Components Speed | 0.2mm |
| No. of Feeders Station | 52 PCS (104 PCS customize, IC tray/nozzle change option) |
| No. of nozzles | 10 PCS |
| Power | 220AC 50HZ |
| Power Consumption | 1.5kw |
| Operating Environment | 23℃±3℃ |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Position Mode | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor |
| Feeding way | Intelligent feeder with double motor |
| Production management MES system interface | Customized |

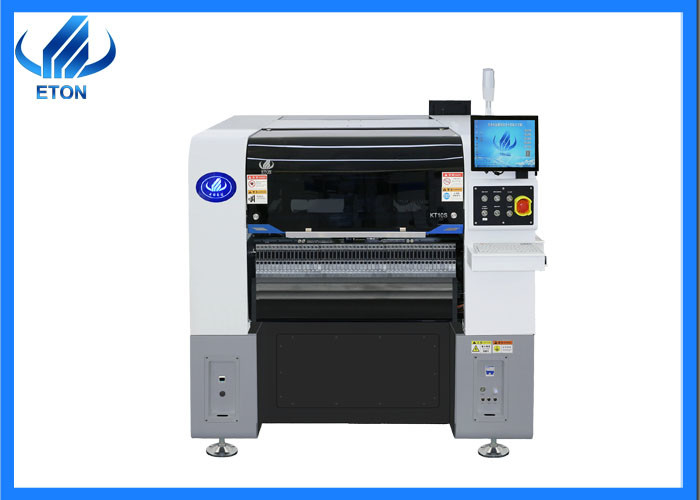

The pictures of SMT machine
Packaging &shipping
PRODUCTING PACKAGING:
Foam wrap to prevent the machine from collision.
Vacuum paper prevent moisture .
Vacuum paper prevent moisture .
Carefully cabinet to ensure a good delivery all the time.
Packaging &shipping
By sea:large transportation capacity,safe,strong continuity and relatively lower cost.
By trunk:suitable for short distance transportation and high speed.
By airplane:faster speed can saving time,high efficiency.
By train:stable,safe,reliable and lower cost.
Application
Service ETON
1.Pre-sale
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
2.On sale
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
3.After sale
1.Arrange engineers to come to the factory to install, debug and teach free of charge;
2.One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
3.Every year there is an opportunity for free machine maintenance
4.Visit customers regularly to understand the usage of the machine and collect customer feedback.
