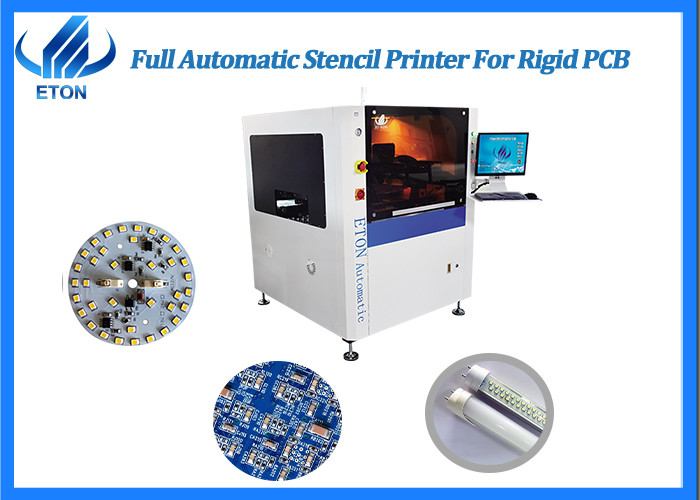

ET5235:ETON stencil printer machine
Features
- X, Y axis adopts high-precision grinding ball screw, driven by servo motors at both side.
- Standard stainless steel scraper, unique design, improve the service life of the blade;
- Downward vision alignment system;
- CNC guide rail adjustment;
- Operating system Windows7,Independent R&D software,Touch- screen LED display, keyboard,mouse input;
- Built-in software diagnostic system;
- SMEMA interface.
Technical parameter
| Screen Frames max size |
737mm |
| Screen Frames min size |
470mm |
| Screen Frames thickness |
25~40mm |
| PCB size(L* W) |
Max size:520mm*350mm
Min size:50mm*50mm
|
| PCB Thickness |
0.6-6mm |
| PCB warpage |
＜1%(Max PCB diagonal) |
| Transport height |
900±20mm |
| Transport direction |
Left-Right; Right-Left; Left-Left; Right-Right |
| Transport speed |
Max 1200mm/s Programmable |
| Squeegee pressure |
0~10kg/cm |
| Squeegee angle |
55℃Standard |
| Squeegee type |
Steel scraper(Standard),PV scraper(Option) |
| Stencil separation speed |
0.1~20mm/sec Programmable |
| Cleaning system |
Dry,Wet,Vacuum (Programmable) |
Our services
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
Company introduction
Shenzhen ETON Automation Equipment Co.,Ltd. -----Manufacturer of SMT automatic pick and place machine.
Company five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Quality principle: Quality First, Client-oriented, Continuous Improvement!
ETON’s purpose: to create value for customers, creating benefits for society.
ETON Vision: Determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
FAQ
Q: How to operate the machine?
A: We will provide online video to help you to operate, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: Is there a warranty on this, please?
A: We offer a one-year Warranty and free repair and replacement parts within one year.
Q: What's your delivery date?
A: The delivery date is about 30 days upon the down payment.
