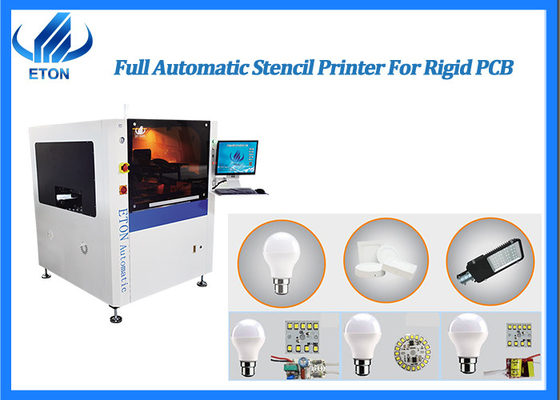

Automatic SMT Stencil Printer for LED and electric products pcb soldering
Features
- X, Y axis adopts high-precision grinding ball screw, driven by servo motors at both side.
- Standard stainless steel scraper, unique design, improve the service life of the blade;
- Downward vision alignment system;
- CNC guide rail adjustment;
- Operating system Windows7,Independent R&D software,Touch- screen LED display, keyboard,mouse input;
- Built-in software diagnostic system;
- SMEMA interface.
Technical parameter
| Screen Frames max size |
737mm |
| Screen Frames min size |
470mm |
| Screen Frames thickness |
25~40mm |
| PCB size(L* W) |
Max size:520mm*350mm
Min size:50mm*50mm
|
| PCB Thickness |
0.6-6mm |
| PCB warpage |
＜1%(Max PCB diagonal) |
| Transport height |
900±20mm |
| Transport direction |
Left-Right; Right-Left; Left-Left; Right-Right |
| Transport speed |
Max 1200mm/s Programmable |
| Squeegee pressure |
0~10kg/cm |
| Squeegee angle |
55℃Standard |
| Squeegee type |
Steel scraper(Standard),PV scraper(Option) |
| Stencil separation speed |
0.1~20mm/sec Programmable |
| Cleaning system |
Dry,Wet,Vacuum (Programmable) |
Company introduction
ETON is the leading manufacturer of global optoelectronic high speed pick and place machine , the products are exported to more than 20 countries and regions , including South Korea , India , Vietnam , Tunisia , Egypt , Turkey , Russia , Brazil etc . ETON obtains a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights . ETON is rated as " Shenzhen high - tech enterprise "" Guangdong high - tech enterprise "" China high - tech enterprise "" Shenzhen TOP Brand ""2015 LED Technology Innovation Award " “The 4th China LED First Innovation Award" “Industry Special Contribution Award "etc .
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
FAQ
What are the terms of payment?
A: FOB Shenzhen is OK.
How to pay after buying the product?
A:For payment, we only support T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
How long is the product warranty period?
A:Effective within one year after installation.
Clients
Our products not only sell well in China, but also exported to more than 30 overseas countries,
such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.Some listed companies including Changfang, Wanrun Technology, Mulinsen, Linghang, Century Classic, Zhuhai Taobo, Huizhou Guozhan Electronics, etc. have become our customers.
