Product Details:
Payment & Shipping Terms:
|
| Machine Weight: | 600 Kg | Printed Head: | Two Independent Motorized Print Heads |
|---|---|---|---|
| Printing Method: | Automatic | Lead Time: | 30 Days |
| Fpcb Max Size: | 260mm | Warranty: | 1 Year |
| Transport Height: | 900±40mm | Control Method: | PC Control |
| Transport Speed: | Max 1000mm/s Programmable | ||
| High Light: | 100m LED Auto Stencil Printer,LED strip Automatic Stencil Printer,strip roll Auto Stencil Printer |
||

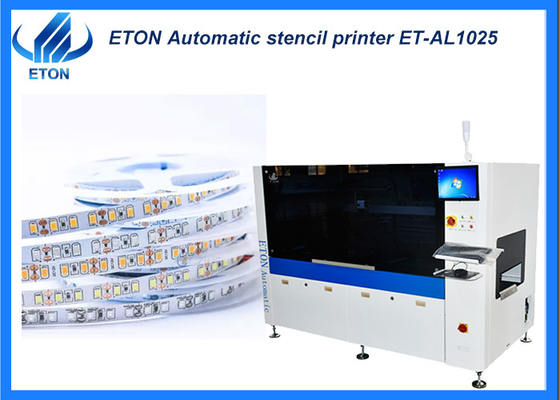

Two independent motorized print heads 100m LED strip roll to roll Auto printer
Description
● Programmable suspension printing head;
● Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
● Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm | |
| Thickness | 25~45mm | |
| FPCB Min Size | 50mm | |
| FPCB Max Size | 260mm | |
| FPCB Thickness | 0.5~5mm | |
| FPCB Warpage | Max. FPCB diagonal 1％ | |
| Transport Height | 900±40mm | |
| Transport Direction | Left-Right | |
| Transport Speed | Max 1000mm/S Programmable (Adjustable) | |
| Board Location | Support System | Platform jacking tension |
| Clamping System | Edge clamp fixed | |
| Print head | Two independent motorized print heads | |
| Squeegee Speed | 6~300mm/sec | |
| Squeegee Pressure | 0~10Kg/cm2 | |
| Squeegee Angle | 55°(Standard) | |
| Squeegee Type | Stainless steel(Standard), plastic | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Manual cleaning | |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
| Machine | ||
| Repeat Position Accuracy | ±0.01mm | |
| Printing Accuracy | ±0.025mm | |
| Cycle Time | ≤9s (Exclude Printing & Cleaning) | |
| Air Required | 4.5~6Kg/cm2 | |
| Power Input | AC:220±10%,50/60HZ 1Φ 1.5KW | |
| Control Method | PC Control | |
| Machine Dimensions | 1754(L)X1249(W)X1600(H)mm | |
| Machine Weight | Approx:600Kg | |
| FPCB transport over plate height | 20mm | |
