Group mounting tube panel strip light SMT high speed placement machine

Large Image : Group mounting tube panel strip light SMT high speed placement machine

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA,ISO
Model Number:	HT-E8D-1200
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Dimensions:	L3150mm X W225000mm X H16500mm	Weight:	2500KG
Feeders Stations:	48PCS	Model:	HT-E8D-1200
Feeding Way:	Electric Feeder With Double Motor.	Type:	Automatic
Capacity:	90000	Power Supply:	AC 220V, 50/60Hz
Heads:	24PCS
Highlight:	tube panel strip light placement machine , SMT high speed placement machine , Group mounting SMT placement machine

Group mounting tube panel strip light SMT high speed placement machine

Product description

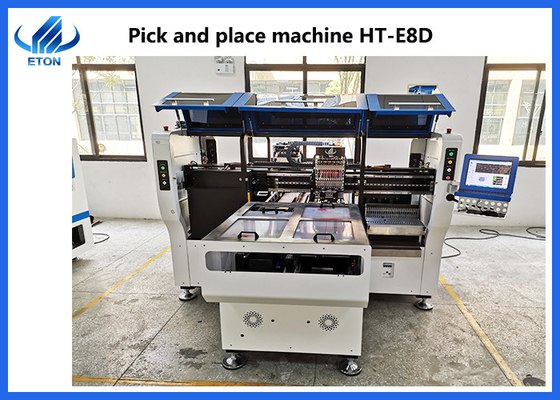

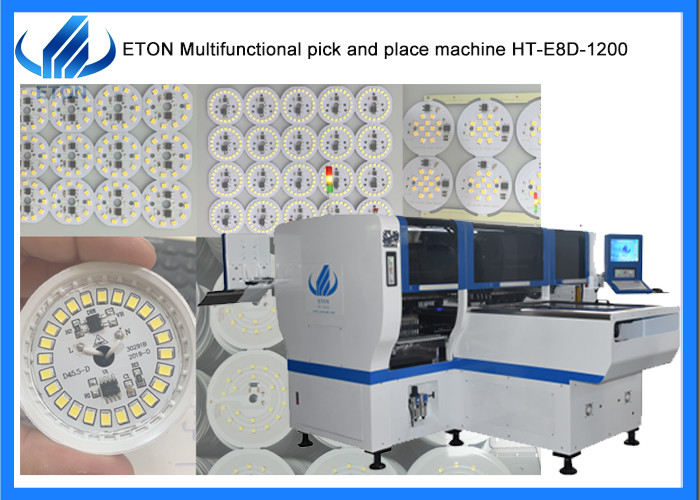

E8D-1200 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.

Features:

Dual system, dual module multifunctional mounter to produce two different products at the same time.
Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
Component: Min. Size 0402, Max. Height 15mm.
Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

Electronic feeder feeding system.
Vision alignment flight identification, Mark correction.
Non- stop material re-loading function.
Auto-optimization after coordinates generated, etc.

Machine parameter

Model	HT-E8D-1200
Dimension	3150mm2250mm1650mm
Total weight	2500kg
PCB length width	Max:1200300mm Min:100100mm
PCB thickness	0.5-5mm
PCB clamping	Adjustable pressure pneumatic
Mounting mode	Group picking and separately placing, Separately picking and separately placing
Mounting precision	±0.04mm
Mounting speed	90000CPH
No. of feeders station	48PCS single module
No. of head	24 PCS single module

Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
Group mounting tube panel strip light SMT high speed placement machine 0
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,etc.
Group mounting tube panel strip light SMT high speed placement machine 1
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Group mounting tube panel strip light SMT high speed placement machine 2
