| Mounting Mode: | Group To Take And Group To Mount | Fpcb Min Size: | 100MM |
|---|---|---|---|
| Total Weight: | 2500kg | Apply To: | Smt Production Line |
| Dimenion: | L3150㎜*W22500㎜*H1650mm | System: | Windows 7 |
| No Of Camera: | 4 Sets | Optimum Mounting Speed: | 90000CPH |
| Applicable Components: | 0402 | Item: | LED SMD Chip Mounter |
| High Light: | 48 Feeder Station pick place machine,Middle Speed pick place machine,Multifunctional pick place machine |
||

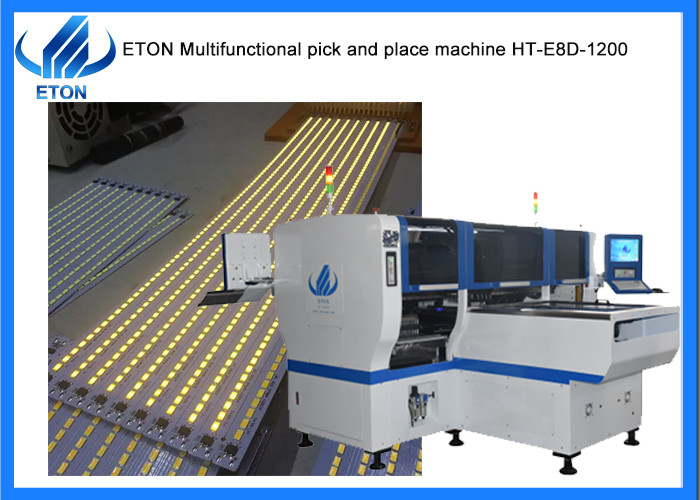

Middle speed multifunctional pick and place machine 48 feeder station
Product description
E8D-1200 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.
Features:
Exclusive Patented Technology:

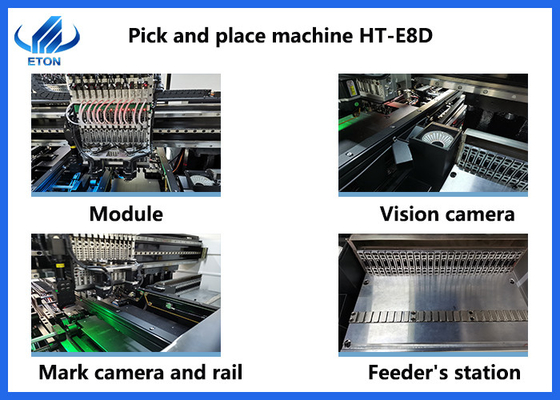

Machine parameter
| Model | HT-E8D-1200 |
| Dimension | 3150mm*2250mm*1650mm |
| Total weight | 2500kg |
| PCB length width |
Max:1200*300mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing, Separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting speed | 90000CPH |
| No. of feeders station | 48PCS single module |
| No. of head | 24 PCS single module |

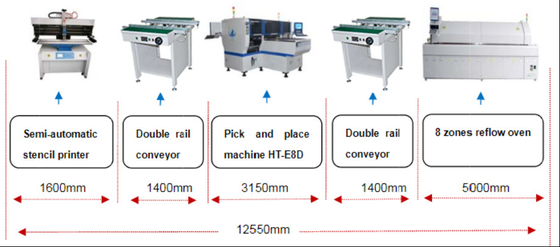

SMT Line solution
The equipment required for the semi-automatic production line includes:
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Our advantage
We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
