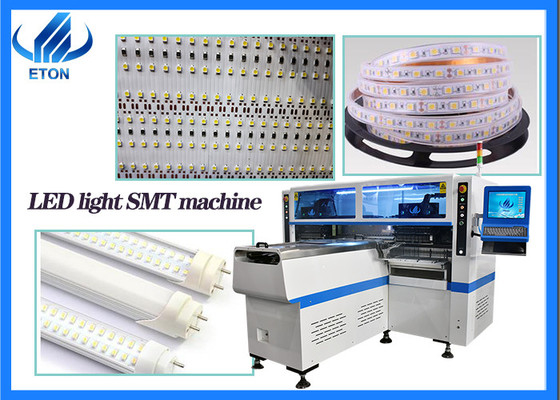

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
Production features
HT-F9:Dual arm magnetic linear LED high speed pick and place machine.
Mounting components: led3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers.
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
Dual arm four module, 17 nozzles for each part,total 68 head.Producing with 4 types materials at the same time with high capacity, available for board with any proportion of Led chip and resistor.
Mounting speed reached 200000 to 250000CPH.
Advantages
1.Brand guarantee.
2.having decades experience in this field.
3. This machine's mounting speed has broken the world record, which reached 200000~250000 CPH.
4.Quality assurance.
5.Quick delivery.
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
200000~250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
Application
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.
Company profile
ShenZhen ETON Automation Equipment Co.,Ltd.was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production,sales and service of SMT high speed pick and place machine and SMT peripheral automatic equipment.Concentrating on creating national brand and offering clients superior quality pick and place machine, good professional guidance, superior sales services system. Nowadays,we have been working with numerous domestic and foreign companies. We has achieve everyone’s unanimous recognitio
Exhibition
ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including domestic exhibitions and foreign exhibitions(except the epidemic period).Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.
Services
FAQ
Q: What is your actual speed of your products?
A: For the actual speed of the machine which is constrained by many factors,that relatedto the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q: Can I go and see if you have sold the equipment to India?
A: Yes, we have sold our machine in India, but for the fact we can't decide it for our customer, but I will try to contact our customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
