Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0805,0603,1206 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
| Condition: | New,100% Original,Brand-new | Mounting Speed: | 250000 CPH |
| Type: | Automatic | Usage: | SMT Mounting Machine,LED |
| High Light: | LED tube SMT chip mount machine,250000CPH SMT chip mount machine,Automatic SMT chip mount machine |
||

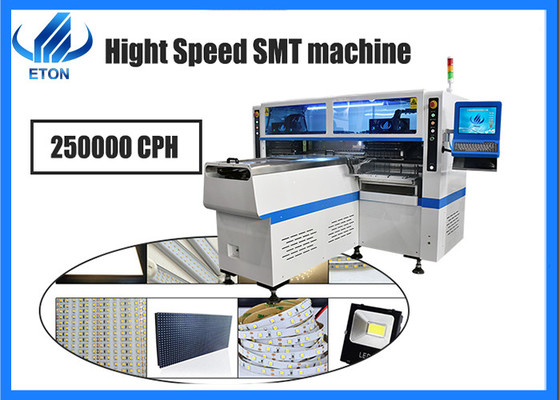

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
Production features
HT-F9:Dual arm magnetic linear LED high speed pick and place machine.
Mounting components: led3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers.
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
Dual arm four module, 17 nozzles for each part,total 68 head.Producing with 4 types materials at the same time with high capacity, available for board with any proportion of Led chip and resistor.
Mounting speed reached 200000 to 250000CPH.
Advantages
1.Brand guarantee.
2.having decades experience in this field.
3. This machine's mounting speed has broken the world record, which reached 200000~250000 CPH.
4.Quality assurance.
5.Quick delivery.
Machine parameter
| Model | HT-F9 |
| Dimension(L*W*H) | 2700*2300*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*330mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.02mm |
| Mounting mode | Group to take and group to mount |
| Mounting height | ≤5mm |
| Mounting speed | 200000~250000 CPH |
| Power consumption | 6KW |
| No. Of feeders station | 68 PCS |
| No. Of head | 68 PCS |
Application
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.
Company profile
Shenzhen ETON automation equipment Co., Ltd., established in 2011, is a manufacturer and process solution provider focusing on the R & D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment, such as LED lamp mounter, automatic visual printer, automatic high-speed dispensing machine, etc. The products are easy to operate and the follow-up service is first-class. We have cooperated with many LED lamp manufacturers all over the world.
Exhibition
ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including domestic exhibitions and foreign exhibitions(except the epidemic period).Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.
Services
FAQ
Q:How long is the time of delivery?
Generally, the test delivery period is one month.
Q:If my order is very urgent, how long you can proceed?
We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.
Q:How are the products packed for sea shipment?
Most of the products have their unique packing, Then we put them into a carton. The cartons are sealed with tape.
Q:How can you make sure that the products won’t be damaged or wet?
We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
