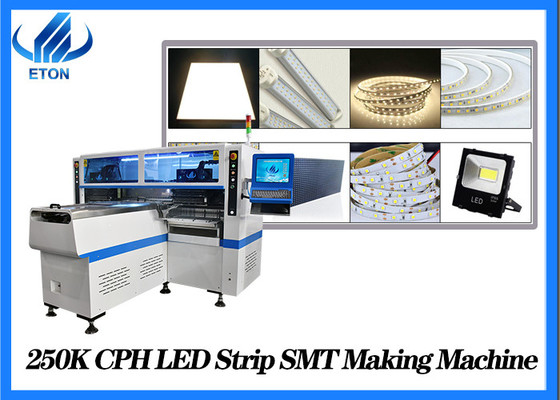

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
Production features
HT-F9:Dual arm magnetic linear LED high speed pick and place machine.
Mounting components: led3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers.
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
Dual arm four module, 17 nozzles for each part,total 68 head.Producing with 4 types materials at the same time with high capacity, available for board with any proportion of Led chip and resistor.
Mounting speed reached 200000 to 250000CPH.
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
200000~250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
Application
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.
Company profile
1.Our company has more than 15 years development history.
2.Independent R&D Exclusive Patented technology.
3.85% large and listed LED factory in China are our client.
4.Top 1 in highspeed pick and place machine in China.
5.Overseas engineers and office in India, Egypt, Turkey
6. Door to door machine installation and training for free
Exhibition
ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including domestic exhibitions and foreign exhibitions(except the epidemic period).Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.
Service
Our service can be divided into three parts: pre-sales service, in-sales service and after-sales service:
Pre-sales service can be called professional product consultation. If you are particularly familiar with the patch machine industry, we have special technical consultants to answer the technical questions you want. If you want to move into this industry, we also have special personnel who can provide some information about the patch machine to make you more familiar with the pick and place machine
Service in sales refers to that you have paid a deposit in advance, and after the production of your products, we will regularly share the progress of product production with you. Of course, if you have other requirements during this period, you can also say it, and then we will make your expectations for the products.
After sales service refers to all the services we provide when you receive the products. We have a special after-sales department to serve you, such as guiding installation, training employees, regular follow-up, sharing industry information and so on.
FAQ
Q:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms; (3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping; (6)Send your order via express or by air or by sea.
Q: what can you buy from us?
Multi-functional pick and place machine,High-speed pick and place machine,Glue dispenser machine,Multifunctional Pick And Place Machine,High Speed Pick And Place Machine
Q: why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of smt machine with more than 10 years with good quality and reputation.We have rich experience in helping client to start new factory and new line."Professional,high-effective,cost-saving" are our advantages.
