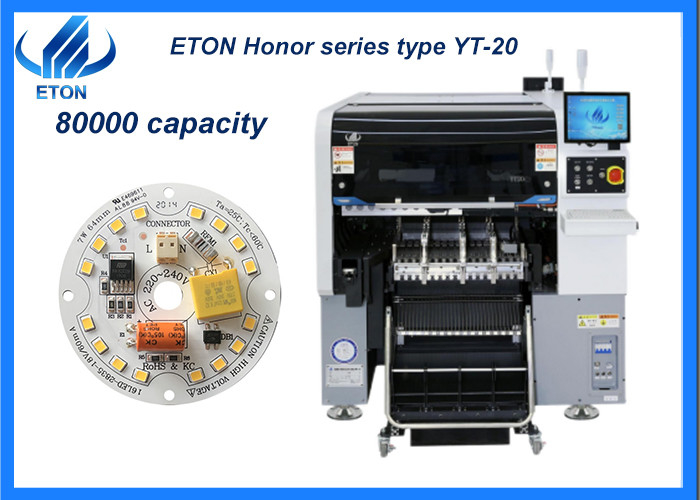

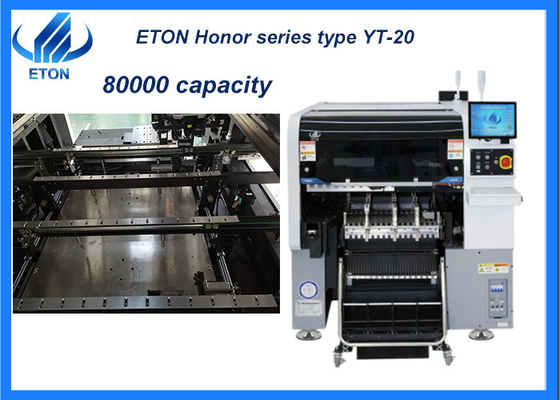

Placement machine high accuracy 80000 capacity for electronic board
Description
- Adopt High speed multi modular head, apply to ultra small chip 0201~40*40mm large chip, wider component range;
- Brand new flight vision camera improve recognition performance, size up to 40*40mm, apply to BGA or CSP etc;
- Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
- Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 80000 CPH;
- Brand new self-developed high precision placement head;
- Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
- Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder(IC tray feeder:Option)
- Smart Double-Head tape feeder: Support YT series double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component, it can achieve stable, accurate and high-speed feeding;
- The placement head adopt independent vacuum detection, improve placement performance;
- Off-line programming, save time of changeover cycle;
- Software AI intelligent learning function and automatic optimization function.
- Two gantry, 20 spindles*2 Gantry, total 40 spindles;
- Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.
Machine main parameter
| Model |
YT-20 |
| PCB size |
Max size: 500*450 mm(Single side)
500*300(Double side)
Min size: 50*50 mm
|
| PCB thickness |
0.5-4.5 mm |
| PCB clamping |
Cylinder clamping, track width adjustable |
| Rail |
2 rail, 2 gantries(Rail 1,4 are fixed rail) |
| Software |
R&D independently |
| Production management MES system |
Customized (Option) |
| Off-line programming |
Available |
| Camera |
Bottom vision camera recognition/ Flight identification camera
|
| Repeat precision |
±0.02 mm |
| Mounting height |
≦15mm |
| Position mode |
Optical |
| Optimal speed |
80000 CPH |
| Component range |
Min 0201~40*40 mm tape reel packages and IC tray feeder etc. |
| Position mode |
Optical |
| No.of heads |
Double side docking cart slot 32PCS,tape reel packages:64PCS(single
side docking cart slot 16PCS,tape reel packages:32PCS),freely switching
between docking cart and IC tray feeder(IC tray feeder:Option)
|
| Feeding way |
Intelligent double head feeder |
| X,Y,Z Axis drive way |
High-end magnetic linear motor + Servo motor |
