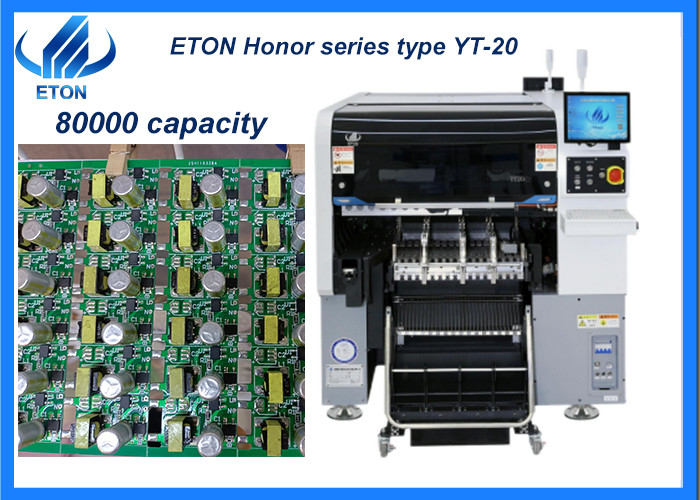

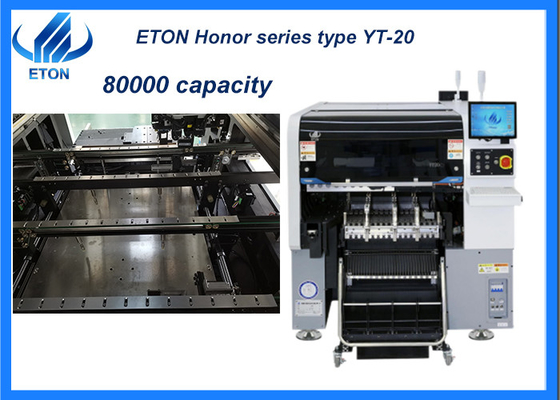

Min 0201 components SMT placement machine 40PCS head SMT mounting machine

40PCS SMT mounting head  Min 0201 components SMT placement machine

Machine main features

• Adopt High speed multi modular head, apply to ultra small chip 0201~40*40mm large chip, wider component range;
• Brand new flight vision camera improve recognition performance, size up to 40*40mm, apply to BGA or CSP etc;
• Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
• Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 80000 CPH;
• Brand new self-developed high precision placement head;
• Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
• Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder(IC tray feeder:Option)
• Smart Double-Head tape feeder: Support YT series double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component, it can achieve stable, accurate and high-speed feeding;
• The placement head adopt independent vacuum detection, improve placement performance;
• Off-line programming, save time of changeover cycle;
• Software AI intelligent learning function and automatic optimization function.
• Two gantry, 20 spindles*2 Gantry, total 40 spindles;
• Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.

Machine main parameter

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

Packages

As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.

Shipping and Delivery

Shipping Way:

※ By air, for sample and small package

※ By sea, for large package and quantity;

※ Other ways as customer requested.

Delivery Time:

※ Within 30 Days.
