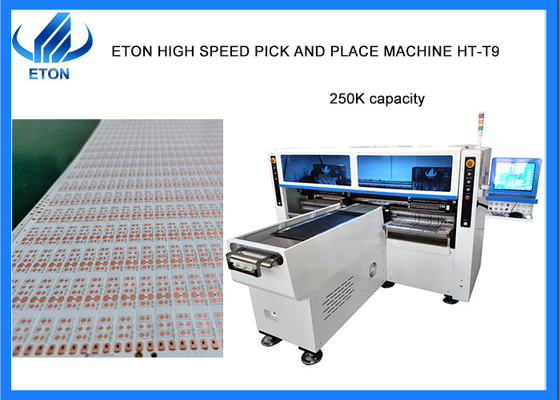

Roll to roll RGB led flexible strip light SMT placement machine
Production description
Dual arm magnetic linear high speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000 CPH.
Features

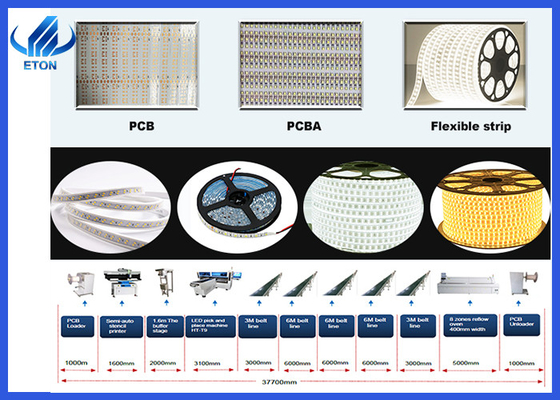

- Producing 4 types of materials at the same time with high capacity, available for 5m, 50m or any length of flexible strip and Roll to Roll.

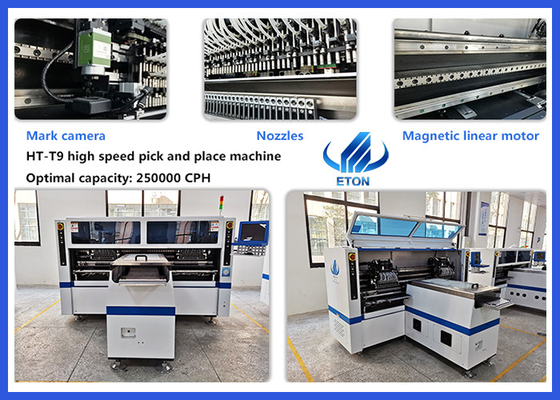

- Dual arm four module, 17 nozzles for each mounting part, part A, part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for for RGB.
- Exclusive patent technology: Group to pick and group to mount.
Machine parameter
| Model |
HT-T9 |
| Dimension |
3100*2250*1650mm |
| Total weight |
1700kg |
| PCB length width |
250mm*any length |
| PCB thickness |
0.5-1.5mm |
| PCB clamping |
Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting mode |
Group picking and group placing |
| Mounting precision |
±0.02mm |
| Mounting speed |
20-25W CPH |
| No. of feeders station |
68PCS |
| No. of head |
68PCS |
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,etc.
