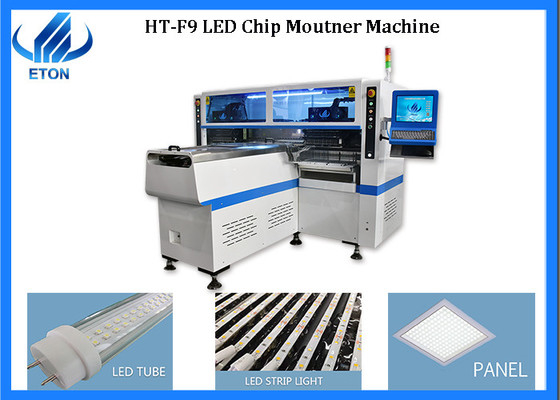

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The function of highspeed led mounting machine
The function of led chip mounter machine is mounting the components(led chip/ resistor/ capacitor/ ic/ shaped components etc) on the PCB. The led chip mounter machine is the main equipment in the SMT line, and also it influence whole SMT line capacity.
The features of ETON highspeed led mounting machine
1. ETON is long history and good experience at led chip mounter machine, especially the high speed mounter and super high speed mounter. We got more than 80% big led factory market in China. Many big Chinese brand are our clients, such as the Yankon, MLS, Foshan Lighting, NVC, etc.
2. ETON Machine is cheaper compared with same capacity. We have different speed module, like the 40000 cph, 80000 cph, 170000 cph, 250000 cph. With more choose if you cooperation with us.
3.ETON machine is multifunctional and intelligent. Suitable for all kinds of led chip and electrical components, such as the IC, Resistor, Capacitor, Terminal , Shaped components, etc
4. ETON machine could be customized according to your product design with strong R&D power.
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
200000~250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
Application
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.
ETON Advantages
ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 90% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam,Japan, Australia, Poland, etc more than 30 countries.
Working with ETON is guaranteed, let’s light up your business!
Exhibition
ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including domestic exhibitions and foreign exhibitions(except the epidemic period).Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
FAQ
1.What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
2.Are you a reliable cooperator?
Yes, we specialized in SMT parts over more 10 years in Shenzhen China. We participated in many exhibitions in abroad and domestic. We have a more 50000㎡industrial park, total 7 building and 300-500 employees. We obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights. And our high speed machines’ speed can reach 250000CPH, broken the world record.
3.Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
4.How long the delivery?
30 Days.
5.What’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
