High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The function of highspeed led mounting machine
The function of led chip mounter machine is mounting the components(led chip/ resistor/ capacitor/ ic/ shaped components etc) on the PCB. The led chip mounter machine is the main equipment in the SMT line, and also it influence whole SMT line capacity.
The features of ETON highspeed led mounting machine
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1mLED flexible strip. Producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:Group to take and group to mount. smt assembly equipment
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
Application
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.

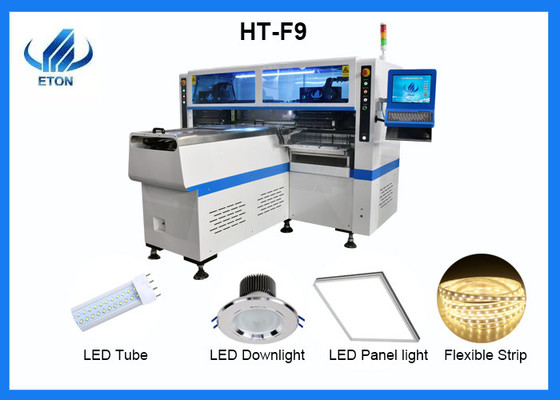

F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.
