Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0805,0603,1206 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
| Condition: | New,100% Original,Brand-new | Mounting Speed: | 250000 CPH |
| Type: | Automatic | Usage: | SMT Mounting Machine,LED |
| High Light: | pcb pick smt mounting machine,PCB place smt mounting machine,LED Tube SMT Mounting Machine |
||

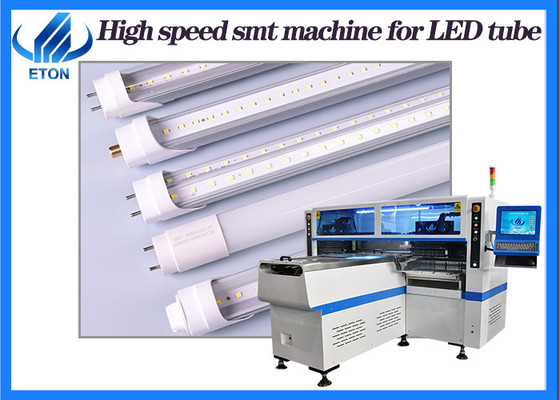

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The function of highspeed led mounting machine
The function of led chip mounter machine is mounting the components(led chip/ resistor/ capacitor/ ic/ shaped components etc) on the PCB. The led chip mounter machine is the main equipment in the SMT line, and also it influence whole SMT line capacity.
The features of ETON highspeed led mounting machine
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1mLED flexible strip. Producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:Group to take and group to mount. smt assembly equipment
Machine parameter
| Model | HT-F9 |
| Dimension(L*W*H) | 2700*2300*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*330mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.02mm |
| Mounting mode | Group to take and group to mount |
| Mounting height | ≤5mm |
| Mounting speed | 250000 CPH |
| Power consumption | 6KW |
| No. Of feeders station | 68 PCS |
| No. Of head | 68 PCS |
Application
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.
ETON Advantages
ETON Automation Equipment Co., Ltd.is a professional manufacturer focusing in pick and place machine. Right now, we have integrated R&D, production and sales together.
With good quality, competitive price, easy operation and energy saving, our products are very popular in domestic and oversea market. And all of our machines are wildly used in electronic circuit, photovoltaic, LED industry, instruments and apparatuses.
Up to now, our products are already sold in many countries such as USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 30 countries.We will continue to make great efforts to satisfy the customers' requirement.
Exhibition
ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including domestic exhibitions and foreign exhibitions(except the epidemic period).Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.
Packaging
All machines shipped abroad will use foam packaging to protect the machines from collisions;
* Secondly, it will be wrapped with stretch film to prevent the equipment from getting damp;
* Vacuum paper packaging and moisture-proof bags keep the machine dry during transportation to prevent moisture;
* Use straps, triangles and nails to fix the machine to prevent damage to the machine during transportation;
* Each export machine will be equipped with a strong export-free wooden box;
Five-star services
Professional solutions:provide professional SMT full line solutions.
Free warranty:One-year warranty factory service.
Free Installation: On-site free installation to ensure smooth production.
Free technical support:7*24 technical online support.
Free software upgrade:offer free software upgrade whole lifetime.
FAQ
(1)It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
(2)What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
(3) Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
(4)What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
(5)Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
