Product Details:
Payment & Shipping Terms:
|
| Feeder: | 52PCS | Thickness: | 0.5-5mm |
|---|---|---|---|
| Size: | Max:500*450 Mm Min:100*100 Mm | Module: | KT10S |
| Power Supply: | AC 220V, 50/60Hz | Applicable Components: | Min：0402 |
| Positioning Way: | Optical | Capacity: | 48000cph |
| High Light: | Min 0402 component smt mounting machine,10 Nozzle SMT Mounting Machine,Middle Speed smt mounting machine |
||

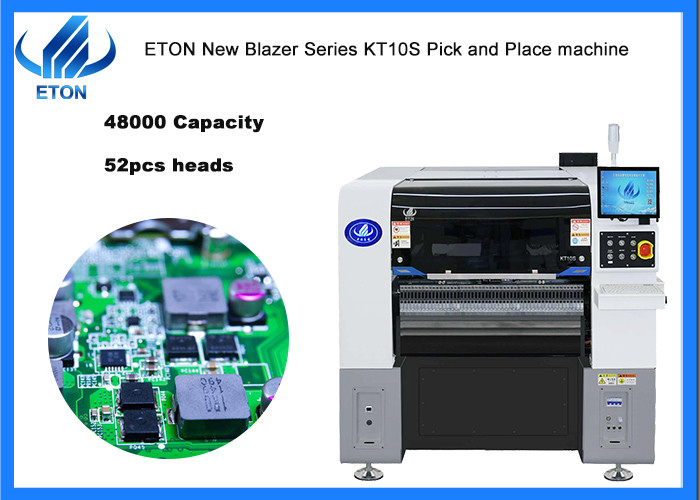

Middle speed Min 0402 component 10 nozzle smt mounting machine
Machine main features
Machine main parameter
| Model | KT10S |
| Dimension | 1460*2015*1654mm |
| Total weight | 2080kg |
| PCB size | Max:500*450mm(Length can be customized) Min:50*50mm |
| PCB thickness | 0.5-5mm |
| Mounting precision | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed | 48000 CPH(Optimal speed) |
| Components | LED, capacitor, resistors, shaped components,etc |
| Power consumption | 220AC 50HZ 1.5KW |
| Feeder station | 52 PCS(option 104 PCS), IC tray option |
| No. of head | 10 PCS |
Machine application
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Service

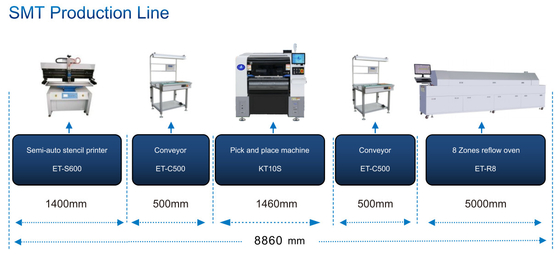

SMT line
A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.
The blowing is the function of each machine:
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
