Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
| Power Supply: | AC220V 50Hz | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 180000 CPH | Type: | Automatic |
| Usage: | SMT Mounting Machine | Feeders: | 68 |
| High Light: | 34 Nozzles SMT Mounting machine,1.2m SMT Mounting machine,1.2m LED PCB Making Machine |
||

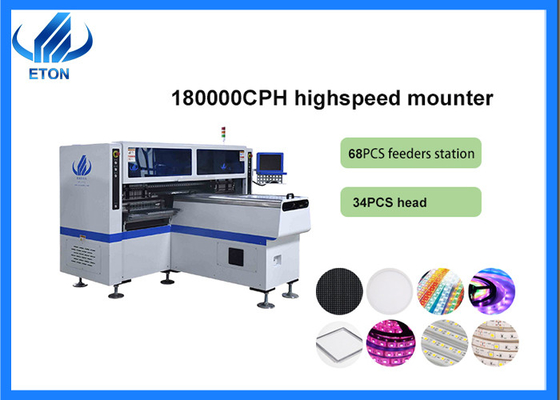

HT-F7S SMT Mounting Machine for 0.6m-1.2m Rigid PCB & 0.5m-1m LED Flexible Strip
Description
Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Technical parameter
| Model | HT-F7S |
| PCB size(L* W) | 1200*330mm Min；100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| System | Windows 7 |
| Software | R&D Independently |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station | 68PCS |
| No.of nozzles | 34PCS |
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Company profiles
ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
ETON got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 20 countries, also expanded our plant and built a new bigger industrial park in Jiangxi Province.
ETON have modern self-owned industrial park with 52,000 square meters. More than 500 employees , The annual sales scaled over 800 million yuan.
Packing
We use vacuum wooden box packaging
Step 1:Film packaging
Step 2:Vacuum packing
Step 3:Wooden box packing
About our services
☺Professional solutions:provide professional SMT full line solution
☺Warranty:1 year warranty factory service(any parts need to be repaired or replaced will be free)
☺Free Installation:one-site free installation to ensure smooth production
☺Free technical training:professional training of operating and maintenance
☺Technical support:24 house online support
☺Software Upgrade:offer free software upgrade whole lifetime.
☺We will take the reaponsibility of machine A to Z.
FAQ
Q:How long is the time of delivery?
A:Generally, the test delivery period is one month.
Q:If my order is very urgent, how long you can proceed?
A:We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.
Q:How are the products packed for sea shipment?
A:Most of the products have their unique packing, Then we put them into a carton. The cartons are sealed with tape.
Q:How can you make sure that the products won’t be damaged or wet?
A:We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
