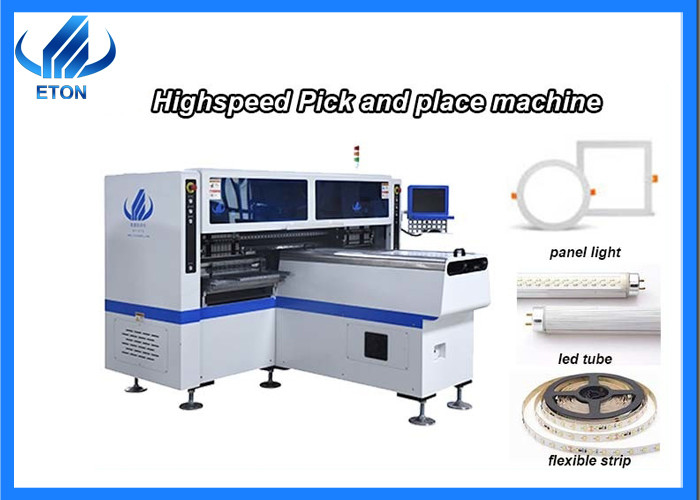

HT-F7S SMT Mounting Machine for 0.6m-1.2m Rigid PCB & 0.5m-1m LED Flexible Strip
Description
Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Technical parameter
| Model |
HT-F7S |
| PCB size(L* W) |
1200*330mm Min；100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount |
| System |
Windows 7 |
| Software |
R&D Independently |
| Components |
LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station |
68PCS |
| No.of nozzles |
34PCS |
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Company profiles
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011.
1.Own Industry Park over 50000 square meters. Support customization: OEM/ODM.
2.Sometimes the machine is in stock.
if you pay and we get the payment, we can arrange delivery immediately
3.Provide SMT whole line solution, based on customer’s factory layout, requirement, product, etc.
4.Quality is guaranteed: We got 9 invention Patents, 112 practical patents, 12 software copyrights
5.Over 10 years experience in SMT machine
6.Local engineer in India(Delhi, Mumbai and Daman),Egypt and Turkey, which can provide you
with the greatest convenience
Packing
We use vacuum wooden box packaging
Step 1:Film packaging
Step 2:Vacuum packing
Step 3:Wooden box packing
FAQ
1:Why we choose you company?
A:ETON has independently developed the world's first technological invention patents and proprietary
technologies,including 9 invention patents, 12 software copyrights and 112 practical patents.
2:What is your delivery date?
A:The delivery date is about 20 days upon the full payment.
3:Does the price include nozzles and feeders?
A:We don't include nozzles and feeders,because each customer requires different nozzles and feeders.
4:Does your company only buy Mounter?
A;We also provide Send board machine PCB un-loader, conveyor, semi-automatic stencil printer
and automatic stencil printer.
What is SMT?
SMT means Surface Mount Technology. It is the most popular technology and process in the electronic assembly industry. It is a circuit assembly technology that mounts the surface mount components without leads or short leads on the surface of the printed circuit board or the surface of other substrates, and then solders and assembles them by reflow soldering or dip soldering.
