Strip Light 1m 0.5m Rigid Board High Speed Pick And Place Machine

Strip Light 1m 0.5m Rigid Board High Speed Pick And Place Machine
Strip Light 1m 0.5m Rigid Board High Speed Pick And Place Machine Strip Light 1m 0.5m Rigid Board High Speed Pick And Place Machine

Large Image :  Strip Light 1m 0.5m Rigid Board High Speed Pick And Place Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: HT-F7S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Software: R&d Independently Feeders Station: 68PCS
Machine Warranty: One Year Mounting Heads: 68pcs
Mounting Accuracy: ±0.02mm Optimal Speed: 180000CPH
Name: SMT Pick And Place Machine Power Supply: 380AC 50HZ
High Light:

Strip light Pick And Place Machine

,

1m Strip Pick And Place Machine

,

rigid board Pick And Place Machine

Strip light 1m 0.5m rigid board high speed pick and place machine



Production description

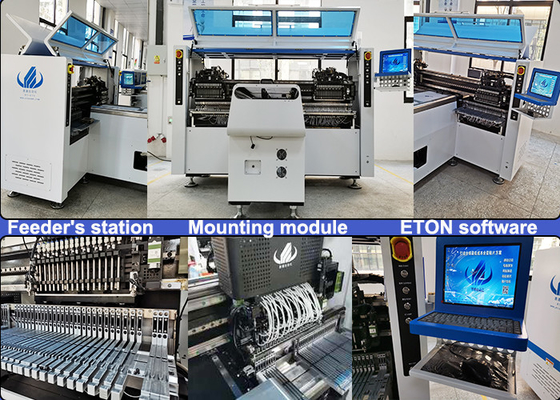

Dual arm professional high-speed mounter, mounting 2-4 types of materials at the same time capacity reach 180000 CPH.

Features

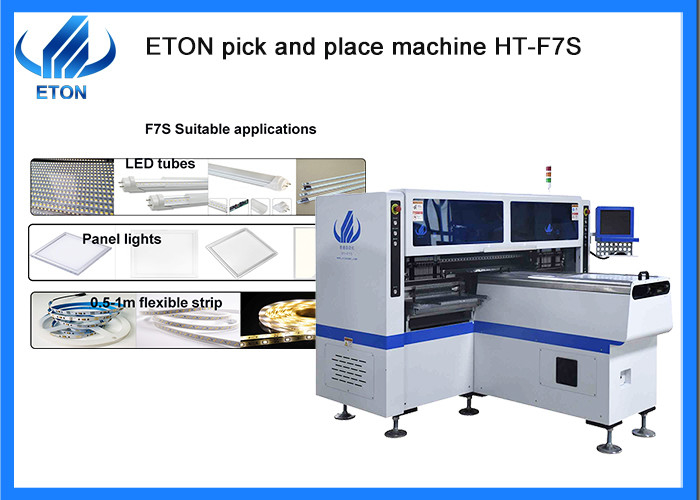

  • Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
  • Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
  • Calibration automatically, high precision, available for RGB.
  • Exclusive patent technology: Group picking and group mount placing.
  • IPC9850 capacity: 150000-180000 CPH

Machine parameter

Model HT-F7S
Dimension 2700*2300*1550mm
Total weight 1700kg
PCB length width

Max: 1200*330mm

Min: 100*100mm
PCB thickness 0.5-5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group picking and group placing
Mounting precision ±0.02mm
Mounting speed 150000-180000 CPH
No. of feeders station 68 PCS
No. of head 34PCS



SMT Line solution

Strip Light 1m 0.5m Rigid Board High Speed Pick And Place Machine 0

Our advantage

  • Focusing on SMT high speed pick and place machine more than 20 years
  • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

Strip Light 1m 0.5m Rigid Board High Speed Pick And Place Machine 1

Our Exhibitions

Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.

Strip Light 1m 0.5m Rigid Board High Speed Pick And Place Machine 2

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

Strip Light 1m 0.5m Rigid Board High Speed Pick And Place Machine 3
